VisqueenPRO Gas Vent Box - GalvanisedVisqueenPRO Gas Vent Box - Galvanised

VisqueenPRO Gas Vent Box – Galvanised Steel

Brand: Visqueen
Product Code: RS054660
In Stock

VisqueenPro Gas Vent Box is a high performance, galvanised steel, ground level vent box that when installed as part of a Visqueen gas venting system will safely disperse harmful gases to atmosphere and reduce the risk of rainwater entering the void.

£495.05 incl. VAT
£412.54 excl. VAT

Qty:

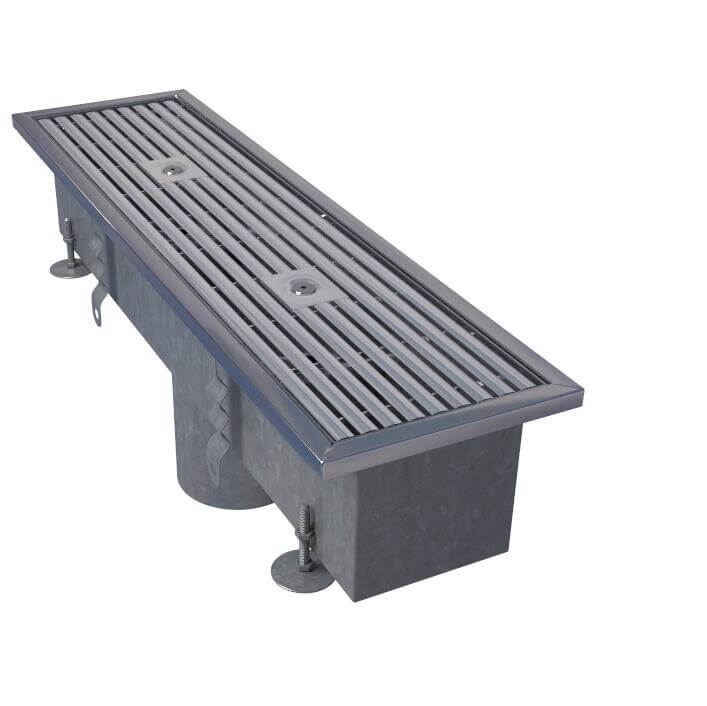

VisqueenPro Gas Vent Box comprises a galvanised steel base with a 110mm pipe inlet and adjustable feet for leveling purposes and to secure the box within the concrete surround. The galvanised steel grating lid is 530mm x 123mm and is secured with locking bolts.

Each vent box provides a free air flow capacity of 20148mm².

VisqueenPro Gas Vent Box is a high performance ground level vent box that when installed as part of a Visqueen gas venting system will safely disperse harmful gases to atmosphere and reduce the risk of rainwater entering the void. The product can also be used to ventilate air spaces e.g. the open void below suspended precast concrete floor structures.

The vent box is typically used in applications where the gas dispersal system cannot be taken out through a perimeter masonry wall e.g. curtain walling and glazing systems. The vent box is normally positioned close to the building perimeter wall but is suitable for load class B125 to BS EN 1433:2002 which includes pedestrian precincts, light vehicles and private car parks.

Features and benefits

  • Used for all ground gas venting applications including volatile organic compounds (VOCs)
  • Tested to BS EN 1433:2002 – suitable for loads up to 12.5 tonnes
  • Heel safe lids – suitable for use in pedestrian areas
  • System allows for water management – reduces risk of rainwater entering the void

Approvals and standards

  • Conforms to BS EN 1433: 2002, load class B125
  • Visqueen certified with Quality Management System ISO 9001:2015
  • Visqueen certified with Occupational Health and Safety System ISO 45001:2018
  • Visqueen certified with Environmental Management System ISO 14001:2015
Property Units Value or Statement
Width mm 123
Length mm 530
Height without legs mm 112
Load class B125
Free air flow capacity mm² 20148
