Visqueen Zedex Housing Grade DPCVisqueen Zedex Housing Grade DPC

Visqueen Zedex Housing Grade DPC – 112.5mm x 20m

Brand: Visqueen
Product Code: RS064394
In Stock

Visqueen Zedex Housing Grade Damp Proof Course is 0.6mm DPC and cavity tray system designed for residential buildings up to and including 3 storeys high. The DPC is suitable for installation in internal walls to prevent rising damp. This product is 112.5mm x 20m

£9.60 incl. VAT
£8.00 excl. VAT

Qty:

View Visqueen Zedex Housing Grade DPC additional variants

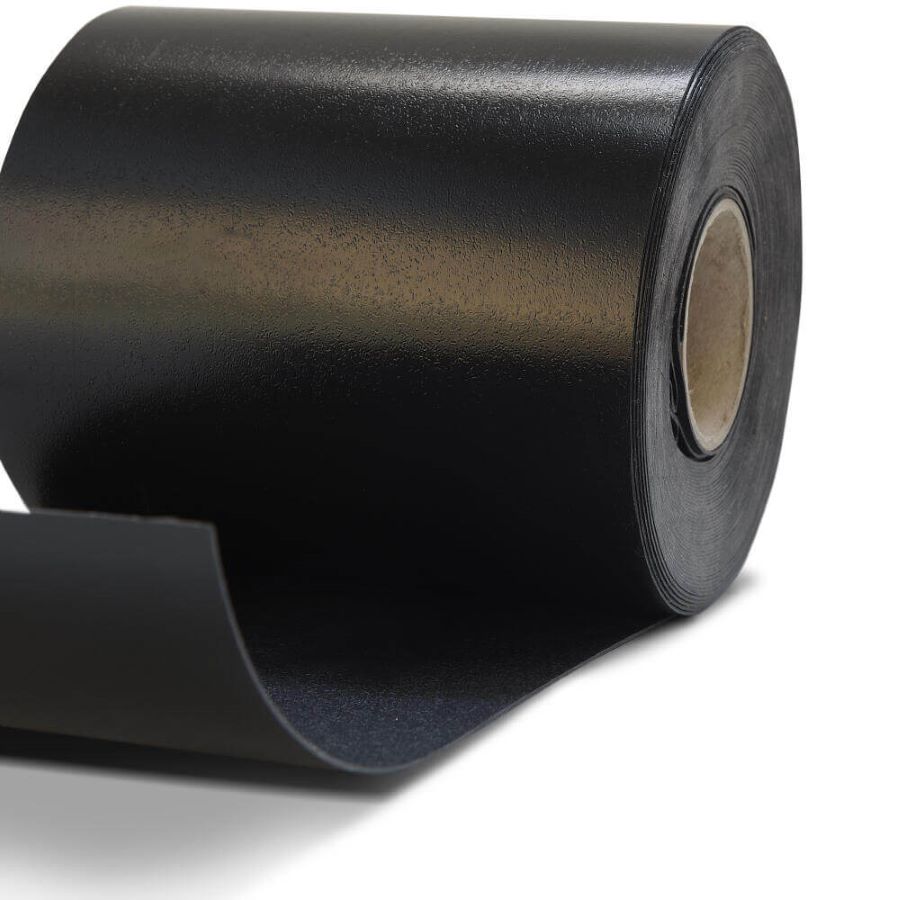

Visqueen Zedex Housing Grade Damp Proof Course (DPC) is a black, flexible 0.6mm damp proof course and cavity tray system. It is manufactured from a mixture of thermoplastic polymers and additives including elastomers. The product does not conform to BS6515:1984. The DPC is supplied in 20m length rolls and the following widths: 100mm, 112.5mm, 150mm, 225mm, 300mm, 337.5mm, 450mm, 600mm, 750mm and 900mm.Β

Features & benefitsΒ

  • BBA certified – third party accreditationΒ
  • Assessed in accordance with Technical Requirement R3 – conforms to NHBC requirements and suitable for NHBC sitesΒ
  • Flexible cavity tray system – easy to detail and install on siteΒ
  • Good tear resistance – robust and resistant to on site damageΒ
  • Versatile applications – widths from 100mm to 900mmΒ
  • Visqueen Preformed Units available – simplifies complex or awkward detailing
Property Test Method Units Compliance Criteria Result
Visible defects EN 1850 -2 – Pass/Fail Pass
Width EN 1848-2 mm -5%/+5% 100 to 1400
Straightness EN 1848-2 – Pass/Fail Pass
Thickness EN 1849-2 micron -10%/+10% 600
Mass EN 1849-2 g/m2 -10%/+10% 570
Joint strength EN 12317-2 N >MLV 160
Watertightness 2kPa EN 1928 – Pass/Fail Pass
Tensile strength (MD) EN 12311-2 MPa >MLV 17
Tensile strength (TD) EN 12311-2 MPa >MLV 14
Elongation (MD) EN 12311-2 % >MLV 500
Elongation (TD) EN 12311-2 % >MLV 500
Resistance to impact EN 12691 mm >MLV 200
Resistance to low temperatures EN 495-5 Β°C MDV -40
Flexibility at temperatures EN 1109 Β°C MDV -15
Durability (artifcial ageing) EN 1296 and EN 1928 – Pass/Fail Pass
Durability chemical resistance EN 1847 – Pass/Fail Pass
Durability against alkali – annex c EN 14909 – Pass/Fail Pass
Resistance to tearing (nail shank) MD EN 12310-1 N MDV 320
Resistance to tearing (nail shank) TD EN 12310-1 N MDV 310
Water vapour transmission – resistance EN 1931 MNs/g MDV 365
Water vapour transmission – permeability EN 1931 g/m2/d MDV 0.37
Reaction to fre EN 13501-1 Class MDV F
