Visqueen VX25 Waterstop - 25mm x 20mm x 5m - Box of 6Visqueen VX25 Waterstop - 25mm x 20mm x 5m - Box of 6

Visqueen VX25 Waterstop 25mm x 20mm x 5m – Single Unit

Brand: Visqueen
Product Code: RS071882/each
In Stock

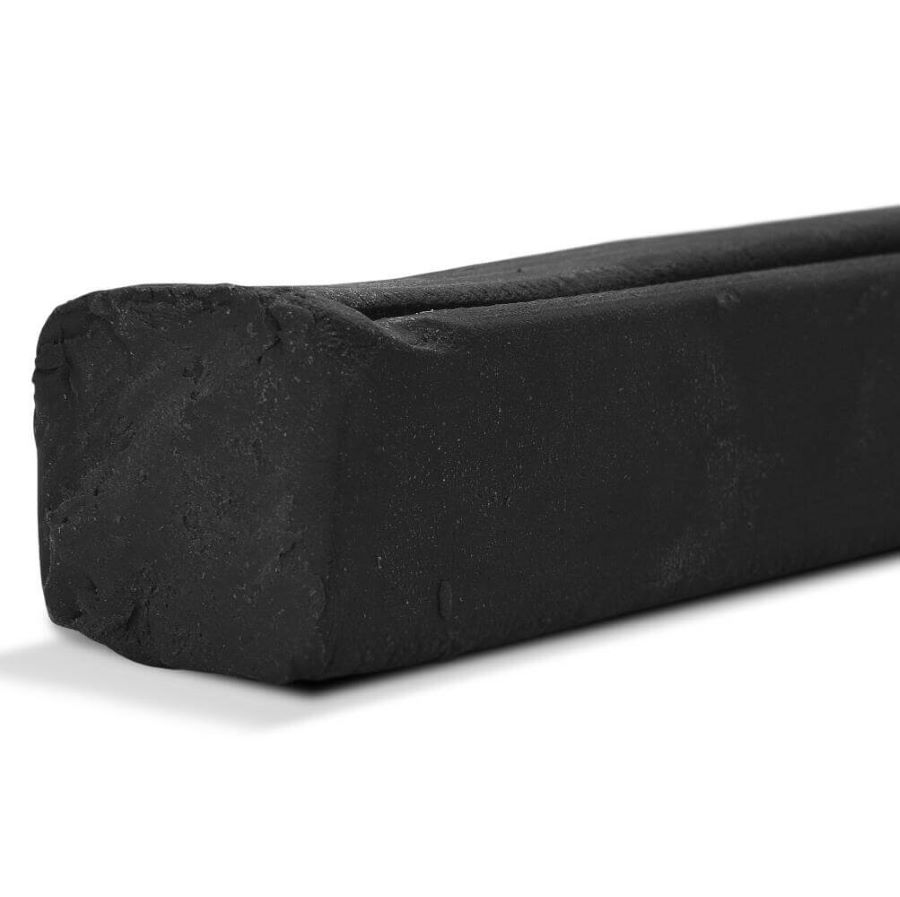

Visqueen VX25 Waterstop is a sodium bentonite and butyl rubber, designed to block the passage of water at construction joints and day-joints in retaining walls which are 200mm wide or thicker. It is suitable for high compressive load applications. Visqueen VX25 comes in single units.

£36.83 incl. VAT
£30.69 excl. VAT

Qty:

Visqueen VX25 Waterstop is a high performance sodium bentonite and butyl rubber. The waterstop bar is 20mm x 25mm x 5m long and sold 6 in a box (30m)

The Visqueen Waterstop Adhesive is a high quality, one component polyurethane adhesive. Upon contact with water, the adhesive can expand up to 450% of its original volume. The product is available in a 310ml cartridge – sold 12 per box – and can be used with a caulking/sealant gun (not supplied by Visqueen).

1 Cartridge covers approximately 8 linear metres.

Features & benefits

  • High quality butyl rubber and sodium bentonite – for concrete retaining walls
  • Self expanding sealing bar – stops water passing through construction joints within the concrete
  • Complete fixing system – 310ml high performance waterstop adhesive
  • Adaptable – suitable for all types of poured insitu concrete
  • Adhesive system – speeds up installation and eliminates the need for mechanical fixings
  • High quality butyl – long shelf life (will not harden when exposed to ambient conditions)
Dimensions 20mm x 25mm x 5m
Colour Black
Box Quantity Single Unit
Expansion in rain water 400%
Expansion in concrete water 150%
Density 1.43 g/cm³
Swelling pressure when encapsulated Approx. 1.8 N/mm²
Resistance to hydrostatic pressure Tested up to 4 bar
Bending radius on the corners 50 mm
Cartridge 310ml
Curing system Moisture
Skin formation * 120 minutes
Curing rate * 1.8mm / 24h
Shrinkage max 4%
Elongation in film >800%
Elongation at break in joint >250%
Tear strength 0.6N/mm²
Coverage Approx. 8 linear metres

*may vary depending on actual temperatures
