Visqueen Ultimate HC BLOK - 0.5mm x 2.44m x 41mVisqueen Ultimate HC BLOK - 0.5mm x 2.44m x 41m

Visqueen Ultimate HC BLOK – 0.5mm x 2.44m x 41m

Brand: Visqueen
Product Code: RS058032
In Stock

Visqueen Ultimate HC BLOK is a chemically resistant co-extruded volatile organic compound barrier and gas barrier s suitable for use in all types of buildings to prevent the ingress of harmful levels of volatile organic compounds (VOCs), methane, carbon dioxide and radon.

£1,445.95 incl. VAT
£1,204.96 excl. VAT

Qty:

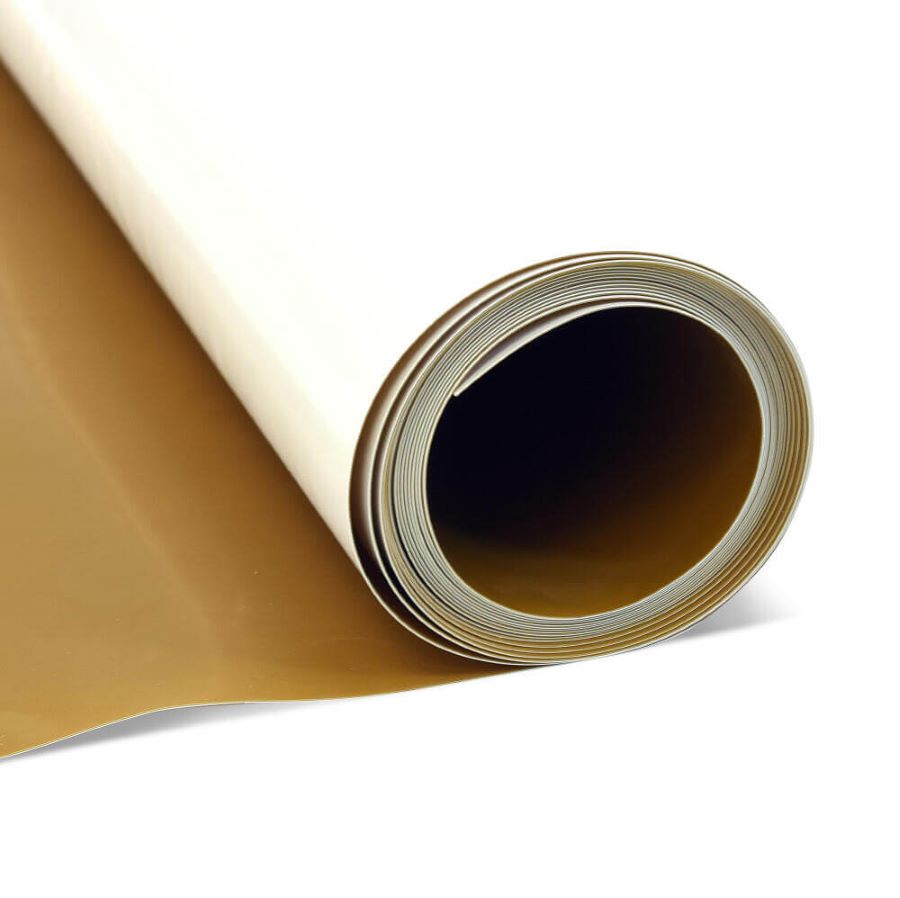

Visqueen Ultimate HC Blok is a 0.5mm thick, chemically resistant co-extruded volatile organic compound barrier and gas barrier. It is coloured gold on the upper surface and white on the reverse. The product is supplied in single wound rolls (not folded), 2.44m x 41m.

Features & benefits

  • Agrement certified – third party accreditation
  • Complies with NHBC Foundation’s NF94 guidance for use in Type A and Type B membrane locations
  • Complies with CIRIA C748:2014 – industry standard for volatile organic compounds (VOC) protection
  • Complies with the methane gas transmission rate, mass per unit area and thickness requirements of BS 8485:2015 + A1:2019 – industry standard for methane and carbon dioxide protection
  • Flexible – easy to detail and install on site
  • Multi functional – also acts as a radon and damp proof membrane
  • Dual jointing methods – lap joints can be taped or heat welded
Property Test Method Units Criteria Result Result
Colour Gold/white Gold/white
Weight kg 49 Gold/white
Length EN 1848-2 m -0/+10% 41 Gold/white
Width EN 1848-2 m -0/+10% 2.44 Gold/white
Thickness EN 1849-2 mm +/-10% 0.5
Puncture BS EN ISO

12236:2006

 N MDV 1640
Impact resistance Method A hard surface EN 12691 mm MDV 200
Impact resistance Method B soft surface EN 12691 mm MDW 1250
Tensiles yield strength MD 1 ASTM D4885-01 kN/m MDV 5.1
Tensiles yield strength CD 1 ASTM D4885-01 kN/m MDV 4.91
Yield elongation MD 1 ASTM D4885-01 % MDV 76
Yield elongation CD 1 ASTM D4885-01 % MDV 62
Tear resistance – trouser method A – MD BS ISO 34-1 kN/m MDV 60.2
Tear resistance – trouser method A – CD BS ISO 34-1 kN/m MDV 66.1
Tear resistance – angle method B – MD BS ISO 34-1 N MDV 48.7
Tear resistance – angle method B – CD BS ISO 34-1 N MDV 49.6
1 – this is at yield and not break as the equipment used was not strong enough to break the membrane
Methane gas transmission rate (unjointed) ISO 15105-1 ml/m²/day/atm <40 1.3
Methane gas transmission rate (welded joint) ISO 15105-1 ml/m²/day/atm <40 24
C748:2014 – Permeation vapour tests – 100%
concentration		 Criteria ml/m²/d mg/m²/d mg/m²/
hr
Benzene ISO 15105-2 MDV 0.08 70 2.92
Toluene ISO 15105-2 MDV 0.09 78.5 3.27
Ethyl benzene ISO 15105-2 MDV 0.11 93.8 3.91
m,p xylene ISO 15105-2 MDV 0.01 6.7 0.28
Hexane ISO 15105-2 MDV Gas 2.6 0.11
Vinyl chloride ISO 15105-2 MDV 0 6.4 0.27
Tetrachloroethene (PCE) ISO 15105-2 MDV 0 3.2 0.13
Trichloroethene (TCE) ISO 15105-2 MDV Solid 0.3 0.01
Naphthalene ISO 15105-2 MDV 0.03 19.7 0.82
C748:2014 – Chemical immersion testing weight % Thickness % Tensiles/
elongation
Pass is achieved if the aged membrane is within 25% of the fresh sample EN 14414
Benzene EN 14414 Pass Pass Pass
Toluene EN 14414 Pass Pass Pass
Ethyl benzene EN 14414 Pass Pass Pass
(m,p, and o) xylene EN 14414 Pass Pass Pass
Hexane EN 14414 Pass Pass Pass
