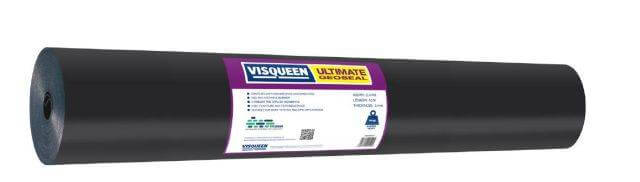

Visqueen Ultimate Geoseal - 1mm x 2.44m x 41mVisqueen Ultimate Geoseal - 1mm x 2.44m x 41m

Visqueen Ultimate Geoseal – 2.44m x 20.5m x 1mm

Brand: Visqueen
Product Code: RS082430
In Stock

Visqueen Ultimate Geoseal is a 1mm thick, robust pre-applied waterproofing barrier. The upper surface is textured to aid adhesion to cast concrete, and the membrane is supplied in single wound rolls (not folded) of 2.44m x 20.5m.

£1,177.96 incl. VAT
£981.63 excl. VAT

Qty:

Visqueen Ultimate Geoseal is a 1mm thick, robust pre-applied waterproofing barrier. It is coloured grey on the upper surface and black on the reverse. The grey surface is textured to aid adhesion to cast concrete. The barrier is supplied in single wound rolls (not folded), 2.44m x 20.5m.

Features & benefits

  • Agrement certified – third party accreditation
  • Complies with NHBC Foundation’s NF94 guidance for use in Type B and Type C membrane locations
  • Complies with CIRIA C748:2014 – industry standard for volatile organic compounds (VOC) protection
  • Complies with the methane gas transmission rate, mass per unit area and thickness requirements of BS 8485:2015 + A1:2019 – industry standard for methane and carbon dioxide protection
  • Type A Barrier Membrane (Tanking Membrane) – resistant to ground water in accordance with BS 8102:2022
  • High resistance to impact compared to standard Visqueen DPMs – greatly reduces risk of barrier becoming damaged during the build process
  • Also provides radon and damp proof membrane protection
  • Dual jointing methods – depending upon specification, lap joints can be taped or heat welded
Property Test Method Units Criteria Result
Colour Grey/black
Weight kg 97
Length EN 1848-2 m -0/+10% 20.5
Width EN 1848-2 m -0/+10% 2.44
BS 8485 and C748:2014 data
Puncture EN 12236 N MDV 2850
Impact resistance Method A hard surface EN 12691 mm MDV 750
Impact resistance Method B soft surface EN 12691 mm MDV >2000
Tensile strength MD (1) equipment unable to break the barrier ASTM D4885-01 kN/m MDV 11.9
Tensile strength CD (1) equipment unable to break the barrier ASTM D4885-01 kN/m MDV 12.7
Elongation MD (1) equipment unable to break the barrier ASTM D4885-01 % MDV >500
Elongation CD (1) equipment unable to break the barrier ASTM D4885-01 % MDV >501
Tear resistance – trouser method A – MD BS ISO 34-1 kN/m MDV 79.6
Tear resistance – trouser method A – CD BS ISO 34-1 kN/m MDV 75.8
Tear resistance – angle method B – MD BS ISO 34-1 N MDV 128.3
Tear resistance – angle method B – CD BS ISO 34-1 N MDV 126.9
C748:2014 – Permeation vapour tests @ 100% conc.
Benzene ISO 15105-2 ml/m²/d MDV <1
Toluene ISO 15105-2 ml/m²/d MDV <1
Ethyl benzene ISO 15105-2 ml/m²/d MDV <1
m,p xylene ISO 15105-2 ml/m²/d MDV <1
Hexane ISO 15105-2 ml/m²/d MDV <1
Vinyl chloride ISO 15105-2 ml/m²/d MDV <1
Tetrachloroethene (PCE) ISO 15105-2 ml/m²/d MDV <1
Trichloroethene (TCE) ISO 15105-2 ml/m²/d MDV <1
Naphthalene ISO 15105-2 ml/m²/d MDV <1
C748:2014 – Chemical immersion testing (2) (2) Pass achieved if barrier under test is within 25% of untested barrier Weight % (2) Thickness % (2) Tensiles/elongation (2)
Benzene EN 14414 Pass Pass Pass
Toluene EN 14414 Pass Pass Pass
Ethyl benzene EN 14414 Pass Pass Pass
(m,p, and o) xylenes EN 14414 Pass Pass Pass
Hexane EN 14414 Pass Pass Pass
Vinyl chloride EN 14414 Pass Pass Pass
Tetrachlororthene (PCE) EN 14414 Pass Pass Pass
Trichloroethene (TCE) EN 14414 Pass Pass Pass
Naphthalene EN 14414 Pass Pass Pass
CE Marking to EN 13967:2017
Characteristic Test method Units Criteria Result
Tensile Strength – MD EN 12311 N/mm² MDV 23.6
Tensile Strength – CD EN 12311 N/mm² MDV 22.4
Tensile Elongation – MD EN 12311 % MDV 701
Tensile Elongation – CD % MDV 706
Joint Strength EN 12317-2 N MDV 598
Watertightness 2kPa EN 1928 – Pass/Fail Pass
Resistance to impact EN 12691 mm MDV 700
Durability watertightness after heat ageing EN 1296 60kPa Pass/Fail Pass
Durability watertightness against chemicals EN 1847 – Pass/Fail Pass
Resistance to tearing (nail shank) CD EN 12310-1 N MDV 720
Resistance to tearing (nail shank) MD EN 12310-1 N MDV 750
Resistance to static loading EN 12730 kg >MLV 20
Water vapour transmission – resistance EN 1931 MNs/g MDV 2142
Water vapour transmission – permeability EN 1931 g/m²/d MDV 0.063
Watertightness welded and taped joint EN1928 60kPa Pass/Fail Pass
Methane gas transmission rate (unjointed) ISO 15105-1 ml/m²/day/
atm		 >40 3.2
Methane gas transmission rate (jointed) ISO 15105-1 ml/m²/day/
atm		 >40 34.7
Carbon dioxide gas transmission rate (unjointed) ISO 15105-1 ml/m²/day/
atm		 <40 7
Radon permeability SP RI.SE m²/s 3.0 x 10¯¹²
