Visqueen High Performance Urban Drainage Geomembrane - 1.4m x 50m x 1mmVisqueen High Performance Urban Drainage Geomembrane - 1.4m x 50m x 1mm

Visqueen High Performance Urban Drainage Geomembrane – 1.4m x 50m x 1mm

Brand: Visqueen
Product Code: RS072278
In Stock

Visqueen High Performance Urban Drainage Geomembrane is a robust fexible chemically inert geomembrane suitable for a variety of geomembrane applications.

£405.77 incl. VAT
£338.14 excl. VAT

Qty:

Visqueen High Performance Urban Drainage Geomembrane is a robust thermoplastic geomembrane, black in colour, 1mm thick and supplied in single wound rolls (not folded), 1.4m x 50m.

Features & Benefits

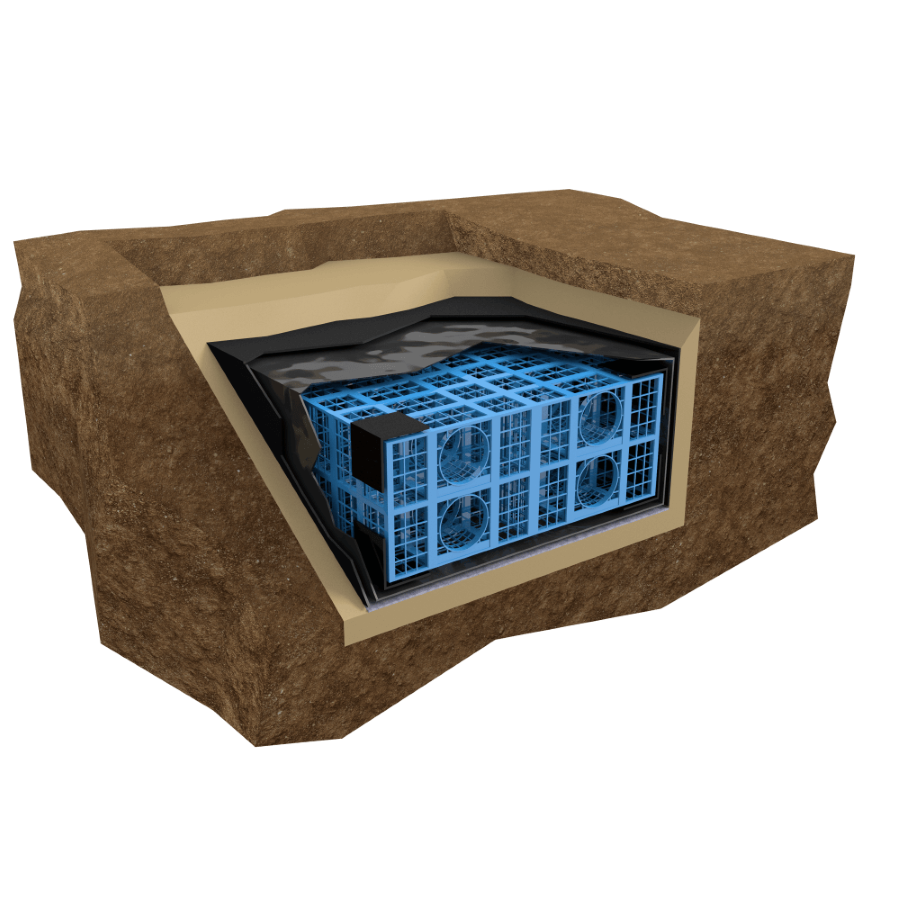

  • Multi functional geomembrane for demanding situations – suitable for use in stormwater attenuation systems and as an impermeable membrane in permeable paving systems
  • Robust – resistant to on site damage and puncture under high compressive loads
  • Flexible – easy to detail and install on site
  • Dual jointing methods – lap joints can be taped or heat welded

v

Property Test Method Units Compliance Criteria Result
Colour Grey
Length EN 1848-2 m 50
Width EN 1848-2 m 1.4
Thickness EN 1849-2 mm 1
Mass EN 1849-2 g/m2 -12.%/+12.% 974
Tensile strength – MD EN 12311 N/mm2 MLV 22
Tensile strength – CD EN 12311 N/mm2 MLV 20
Tensile elongation – MD EN 12311 % MLV 799
Tensile elongation – CD EN 12311 % MLV 848
Joint Strength EN 12317-2 N MLV 515
Watertightness @ 60kPa EN 12311 – Pass/Fail Pass
Resistance to impact EN 12691 mm MLV 600
Resistance to static loading EN 12730 kg MDV -20
Resistance to nail tear – MD EN 12310-1 N MLV 705
Resistance to nail tear – CD EN 12310-1 N MLV 745
Durability – heat ageing EN 1296 – Pass/Fail Pass
Durability – chemical resistance EN 1847 – Pass/Fail Pass
Resistance to low temperature EN 495-5 °C MDV -40
Water vapour transmission – resistance EN 1931 MNs/g MDV 1171
Water vapour permeability EN 1932 g/m2/day MDV 0.11
Reaction to fire EN 13501-1 Class MDV F
Chemical resistance – acids EN 14414-A – Pass/Fail Pass
Chemical resistance – alkalies EN 14414-B – Pass/Fail Pass
Chemical resistance – organic solvents EN 14414-C – Pass/Fail Pass
Chemical resistance – visual defects EN 14414 – Pass/Fail Pass
Resistance to leaching – hot water EN 14415-A – Pass/Fail Pass
Resistance to leaching – aqueous alkaline liquids EN 14415-B – Pass/Fail Pass
Resistance to leaching – organic alcohols EN 14415-C – Pass/Fail Pass
Resistance to leaching – visual defects EN 14415-A – Yes/No No
