Visqueen GR Self-Adhesive Membrane - 1m x 20mVisqueen GR Self-Adhesive Membrane - 1m x 20m

Visqueen GR Self-Adhesive Membrane – 1m x 20m

Brand: Visqueen
Product Code: RS014445
In Stock

Visqueen Gas Resistant Self Adhesive Membrane is a foil lined modified bitumen rubber membrane with a self adhesive coating, suitable for use as a Type A Barrier Membrane (Tanking Membrane) for above and below ground applications e.g. basements, retaining walls and lift pits.

£324.48 incl. VAT
£270.40 excl. VAT

Qty:

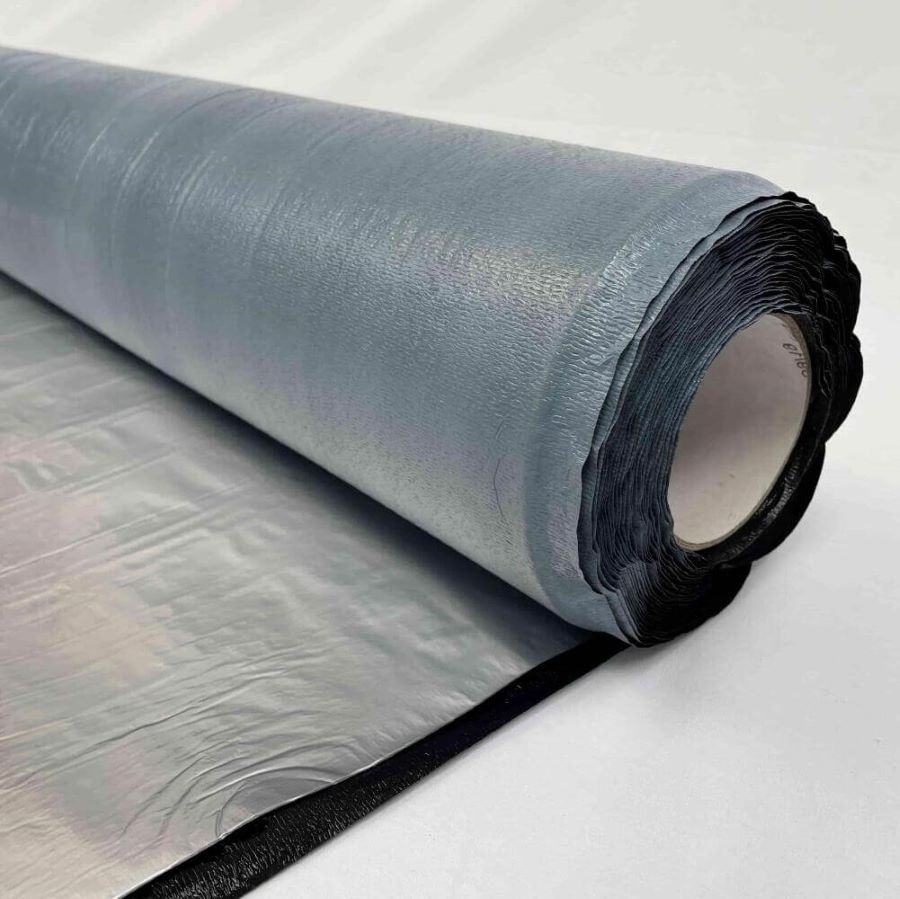

Visqueen Gas Resistant Self Adhesive Membrane is a foil lined modified bitumen rubber membrane with a self adhesive coating protected by a removable polyethylene release film. The product is silver on the upper surface and supplied in rolls 1m x 20m.

Features & benefits

  • BBA certified – third party accreditation
  • Type A Barrier Membrane (Tanking Membrane) – resistant to ground water in accordance with BS 8102:2022
  • Complies with BS 8485:2015 + A1:2019 – industry standard for methane and carbon dioxide protection
  • Flexible – easy to detail and install on site
  • Multi functional – also acts as a radon and damp proof membrane
  • Self adhesive application – no jointing tapes required
Property Test Method Units Compliance Result
Length EN 1848-2 m -0%/+5% 20
Width EN 1848-2 m -5%/+5% 1
Thickness BS EN 1849-2 mm -5%/+10% 1.2
Mass BS EN 1849-2 g/m2 -10%/+10% 1100
Watertightness to 60kPa for 24 hours BS EN 1928 – MDV Pass
Durability after artificial ageing BS EN 1847 – Pass/Fail Pass
Durability against chemicals BS EN 1847 – Pass/Fail Pass
Resistance to tearing (nail shank) MD BS EN 12310-1 N > 100
Resistance to tearing (nail shank) CD BS EN 12310-1 N > 100
Resistance to static loading BS EN 12730 kg MLV 20
Resistance to Impact method A and B BS EN 12691 mm > A >500
B >1000
Reaction to fire BS EN 13501-1 Class E
Joint Resistance BS EN 12317-1 N > 30
Tensile properties – MD BS EN 12311-2 N/mm2 > 2
Tensile properties – CD BS EN 12311-2 N/mm² > 2
Tensile elongation – MD BS EN 12311-1 % > 130
Tensile elongation – CD BS EN 12311-2 % > 130
Reaction to fire BS EN 13501-1 Class MDV F
Methane permeability ISO 15105-1 ml/m²/d MDV <1
Radon transmission rate SP RI.SE m/s MDV 4.7 x 10¯9
Radon permeability SP RI.SE m²/s MDV 0.56 x 10¯¹²
Mean water vapour resistance factor BS EN 1931 (µ) MDV 3960000
Mean water vapour difusion equivalent air layer thickness BS EN 1931 (Sd) in m MDV 4752
Mean water vapour resistance BS EN 1931 MNs/g MDV 23760
Mean water vapour permeability BS EN 1931 g/m²/day MDV 0.03
