Visqueen Gas Vent Mat - 900mm x 50m x 25mmVisqueen Gas Vent Mat - 900mm x 50m x 25mm

Visqueen Gas Vent Mat – 900mm x 50m x 25mm

Brand: Visqueen
Product Code: RS024306
In Stock

Visqueen Gas Vent Mat is a geocomposite void former, designed to create a 25mm deep void beneath reinforced concrete ground floor slabs.. Visqueen Gas Vent Mat is 25mm thick and supplied in rolls 900mm x 50m.

£916.00 incl. VAT
£763.33 excl. VAT

Qty:

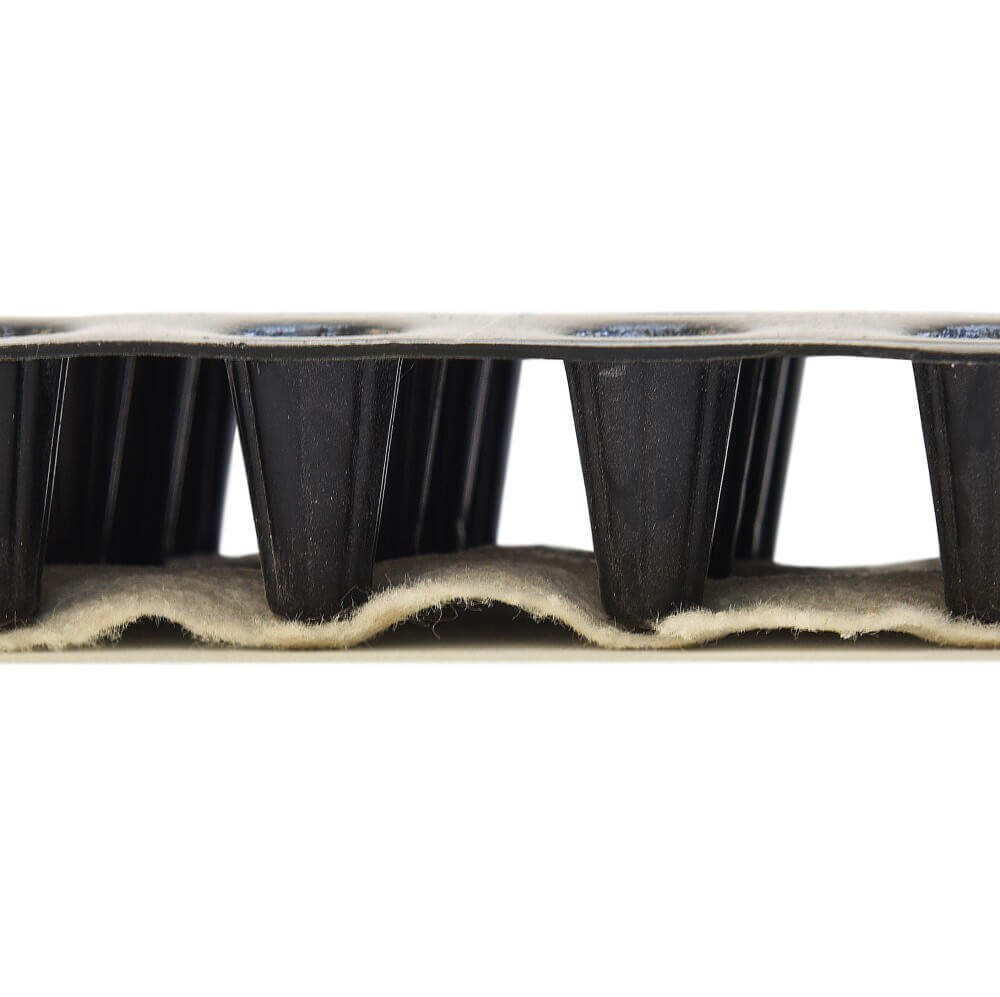

Visqueen Gas Vent Mat is a geocomposite void former comprising a cuspated high density polyethylene (HDPE) core bonded to a non-woven polypropylene geotextile filter membrane. Visqueen Gas Vent Mat is 25mm thick and supplied in rolls 900mm x 50m.

Visqueen Gas Vent Mat is designed to create a 25mm deep void beneath reinforced concrete ground floor slabs. Hazardous ground gases or volatile organic compounds (VOCs) are collected within the void and dispersed to atmosphere via a designed arrangement of Visqueen connectors and venting components, collectively managing and effectively diluting the collected gases.

Where high gas concentrations have been recorded the vent mat can be laid in a blanket format with the individual mats being butted together. Where the gas concentrations are low or where pressure relief is required the vent mat can be laid in a strip format with the mat being laid at predetermined spacings.

Features and benefits

  • Large format rolls – rapid installation
  • Less contaminated soil to be removed compared to pipe and gravel systems
  • System achieves between 0.5 and 1.5 points in accordance with BS8485:2015 + A1:2019
  • Range of system components – provides various methods of exhausting gases to atmosphere

Approvals and standards

  • Visqueen certified with Quality Management System ISO 9001:2015
  • Visqueen certified with Occupational Health and Safety System ISO 45001:2018
  • Visqueen certified with Environmental Management System ISO 14001:2015
Property Test Method Units Value
Width mm 900
Length m 50
Thickness BS EN ISO 9863-1 mm 25
Compressive strength BS EN ISO 25619-2 kN/m² 300
Roll weight kg 74
Roll diameter m 1.3
In-plane air flow capacity with soft/hard platens @ 20mm and 100kPa BS EN ISO 12958 l/m/s 155
Shear strength BS EN ISO 13426-2 kN 1
