Visqueen Gas Barrier - 2m x 50mVisqueen Gas Barrier - 2m x 50m

Visqueen Gas Barrier – 2m x 50m

Brand: Visqueen
Product Code: RS074397
In Stock

Visqueen Gas Barrier is a Multi-layer reinforced gas barrier suitable for use in all types of buildings to prevent the ingress of harmful levels of ground gases e.g. methane, carbon dioxide and radon.

£428.57 incl. VAT
£357.14 excl. VAT

Qty:

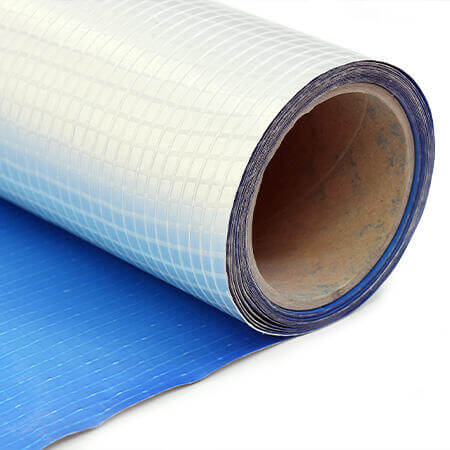

Visqueen Gas Barrier is a multi-layer reinforced polyethylene gas barrier with a 20 micron aluminium foil. The barrier is coloured blue on the upper surface and silver on the reverse. The product is supplied in single wound rolls (not folded), 2m x 50m.

Features & benefits

  • BBA certified – third party accreditation
  • Complies with NHBC Foundation’s NF94 guidance for use in Type A membrane locations
  • Complies with the methane gas transmission rate, mass per unit area and thickness requirements of BS 8485:2015 + A1:2019 – industry standard for methane and carbon dioxide protection
  • Flexible – easy to detail and install on site
  • Multi functional – also acts as a radon and damp proof membrane
  • Dual jointing methods – lap joints can be taped or heat welded
Property Test Method Units Compliance Criteria Result
Dimensions EN 1848-2 m 2 x 50
Overall thickness including scrim mesh EN 1849-2 mm +/-10% 0.52
Mass EN 1849-2 g/m2 -0%/+5% 400
Tensile strength – MD EN 12311 N MLV 350
Tensile strength – CD EN 12311 N MLV 350
Tensile elongation – MD EN 12311 % MLV 20
Tensile elongation – CD EN 12311 % MLV 21
Joint strength EN 12317-2 N MLV 332
Watertightness 2kPa EN 1928 – Pass/Fail Pass
Resistance to impact EN 12691 mm MDV 150
Dart impact BS 2782 g MDV 731
Low-temperature flexibility EN 495-5 °C MDV -40
Durability against ageing EN 1296 and EN 1928 – Pass/Fail Pass
Durability chemical resistance EN 1847 – Pass/Fail Pass
Resistance to tearing (nail shank) CD EN 12310-1 N MDV 358
Resistance to tearing (nail shank) MD EN 12310-1 N MDV 368
Resistance to static loading EN 12730 kg MLV 20
Water vapour transmission – resistance EN 1931 MNs/g MDV 7000
Water vapour transmission – permeability EN 1931 g/m²/d MDV 0.03
Visible defects EN 1850 -2 – Pass/Fail Pass
Reaction to fire EN 13501-1 Class MDV F
BS 8485:2015 + A1:2019 testing requirements
Mass EN 1849-2 g/m2 Average >370 400
Methane gas transmission rate ISO 15105-1 ml/m²/day/atm MDV <0.15
Puncture CBR BS EN ISO 12236 N MDV 1114
Tensiles yield strength MD ASTM D4885-01 kN/m MDV 12.5
Tensiles yield strength CD ASTM D4885-02 kN/m MDV 7.3
Resistance to static loading EN 12730 kg >MLV 20
Yield elongation CD ASTM D4885-04 % MDV 19
Tear resistance – trouser method A – MD BS ISO 34-1 kN/m MDV 48.2
Tear resistance – trouser method A – CD BS ISO 34-1 kN/m MDV 44.8
Tear resistance – angle method B – MD BS ISO 34-1 N MDV 53.5
Tear resistance – angle method B – CD BS ISO 34-1 N MDV 60.6
