Visqueen DPC Joint SupportVisqueen DPC Joint Support

Visqueen DPC Joint Support – 400 x 100mm – Pack of 10

Brand: Visqueen
Product Code: RS074124
In Stock

Visqueen DPC Joint Supports are designed for use beneath cavity tray lap joints in order to provide a solid substrate for joint formation and to ensure long term lap integrity. The supports can also be used at specific locations below the cavity tray length to prevent localised sagging.

£171.95 incl. VAT
£143.29 excl. VAT

Qty:

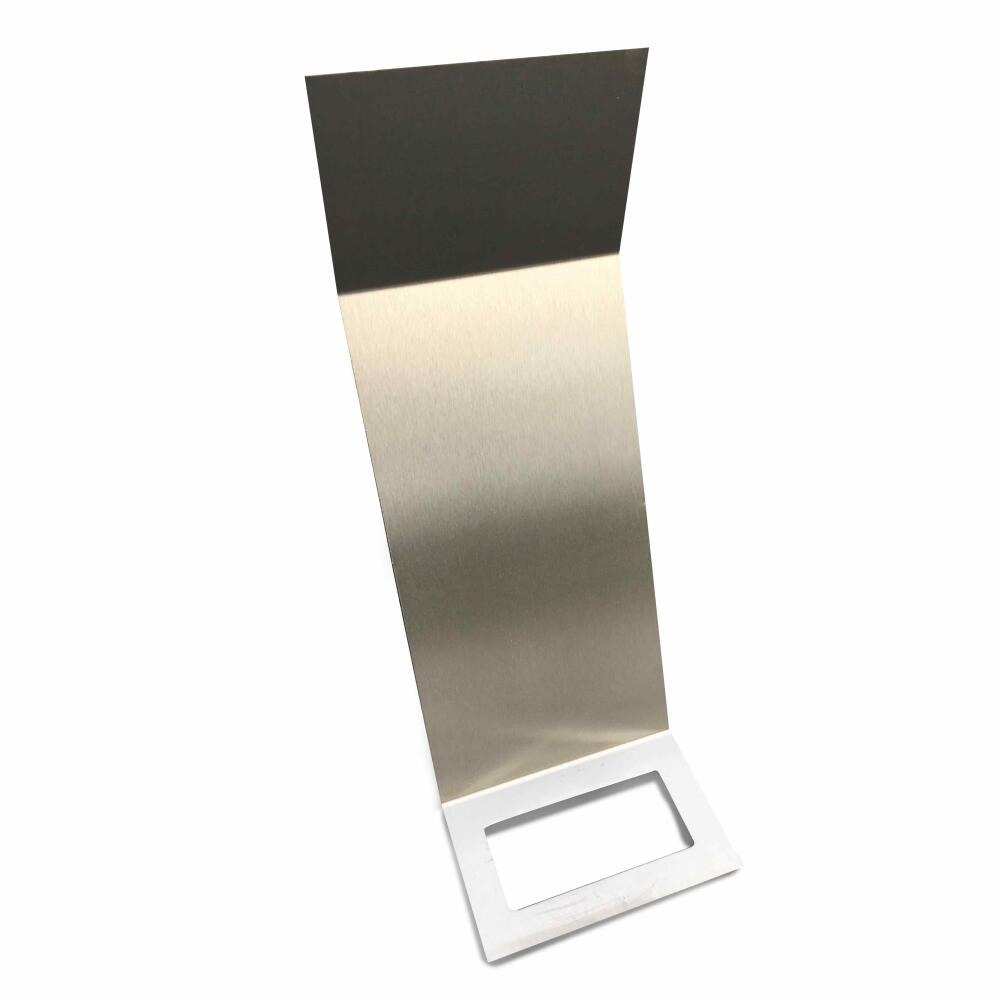

Visqueen DPC Joint Supports are factory manufactured lightweight stainless steel profiles for supporting Visqueen DPC cavity tray lap joints.

Visqueen DPC Joint Supports are designed for use beneath cavity tray lap joints in order to provide a solid substrate for joint formation and to ensure long term lap integrity. Where and if required, the supports can also be used at specific locations below the cavity tray length to prevent localised sagging.

The supports are manufactured as standard from stainless steel to BS EN 10088 grade 1.4301 (BS 1449 grade 304). See additional information section on page 2 regarding availability of other stainless steel grades.

The supports are available as a pack of 10 units which can be hand bent on site to the required cavity tray profile. The pack of 10 units are suitable for cavity tray widths up to and including 500mm.

Features and benefits:

  • Lightweight – easy to handle
  • Factory manufactured – available for any cavity tray profile
  • Maintains cavity tray profile – prevents sagging and water pooling in the cavity tray
  • Rigid support – ensures a solid substrate for the lap formation and ensures long term lap integrity

Approvals and standards:

  • Classified by the European Commission as class A1 rated
  • Ensures compliance with BS 8215:1991 Section 5.5 DPCs in cavity walling (fully supported joints)
  • Visqueen certified with Quality Management System ISO 9001:2015
  • Visqueen certified with Occupational Health and Safety System ISO 45001:2018
  • Visqueen certified with Environmental Management System ISO 14001:2015
Pack size 10 units
Material Stainless steel to BS EN 10088 grade 1.4301 (BS 1449 grade 304)
Suitable for Cavity tray widths up to and including 500mm
Fire rating A1
