Visqueen Class B FR Vapour CheckVisqueen Class B FR Vapour Check

Visqueen Class B FR Vapour Check 2.45m x 50m

Brand: Visqueen
Product Code: RS077518
In Stock

Visqueen Clase B FR Vapour Check is a 0.125mm thick AVCL used to restrict the passage of warm, moist air within the building from permeating into the foor, wall or roof structure and
is designed to be installed on the warm side of the structure. This product is 2.4m x 50m

£178.51 incl. VAT
£148.76 excl. VAT

Qty:

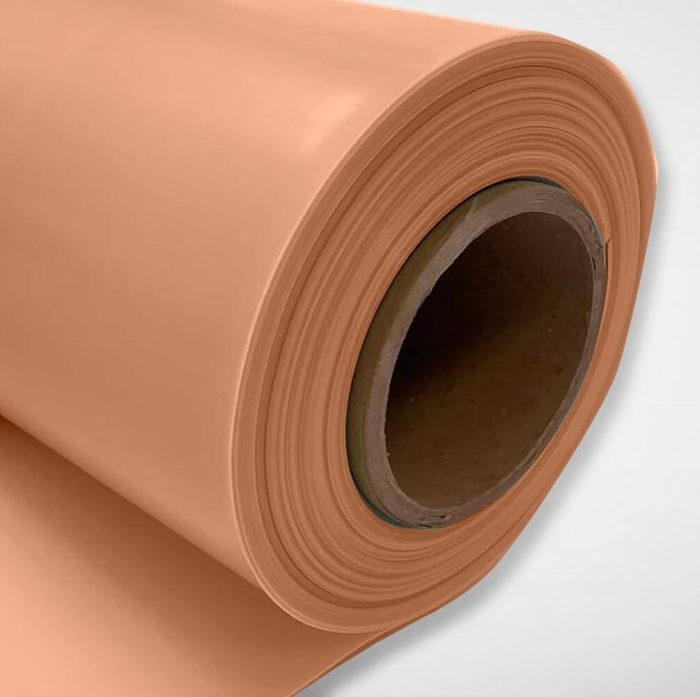

Visqueen Class B FR Vapour Check is an orange tinted, semi transparent modified fire resistant polyethylene AVCL (air and vapour control layer). The product is 0.125mm thick (500 gauge). The membrane is supplied in centre-folded rolls 2.45m x 50m and multi-folded rolls 4m x 50m.

Features & benefits

  • Fire Classification B – s1, d0 surpasses all national Building Regulations for air and vapour control layers – suitable for all building heights including residential over 18m high
  • UKCA UKNI Mark to EN 13984:2013 and Approved Document B – achieves Building Regulation and warranty provider requirements
  • Third party tested to EN 13501-1:2018 – fully tested AVCL system (including tapes) for fire resistance
  • Convenient 2.45m wide roll for wall applications – rapid installation reducing the need for horizontal lap joints
  • Versatile application used within floor, wall and roof constructions – provides air tightness, water vapour resistance and reduces the risk of condensation
  • Excellent puncture and tensile strength characteristics – robust for on-site handling and installation
Property Test Method Units Compliance Criteria Value or statement
Reaction to fire EN 13501-2 Class B-s1, d0
Length EN 1848-2 m -10%/+10% 50
Width EN 1848-2 m -2.5%/+2.5% 2.45 or 4
Thickness EN 1849-2 mm -12.5%/+12.5% 0.125 (500 gauge)
Mass EN 1849-2 g/m2 -12.5%/+12.5% 128
Tensile strength – MD EN 12311 N/mm2 >MLV 15
Tensile strength – CD EN 12311 N/mm2 >MLV 15
Tensile elongation – MD EN 12311 % >MLV 400
Tensile elongation – CD EN 12311 % >MLV 400
Joint Strength EN 12317-2 N MDV 50
Watertightness @ 2kPa EN 1928 – Pass/Fail Pass
Resistance to impact (B) EN 12691 mm >MLV 200
Water vapour resistance factor (µ-value) EN 1931 – MDV 545806
Water vapour transmission – permeability EN 1931 g/m2/d MDV 0.481
Equivalent air layer thickness (Sd) EN 1931 m MDV 71.6
Water vapour resistance EN 1932 MNs/g MDV 341
Air leakage with taped joints BS EN 1026:2016 m³/h/m² @ ±100 Pa <5 0
