Newton Newtonite Damp Proofing Membrane – 2m x 20m

Name: Newton Newtonite Damp Proofing Membrane - 2m x 20m
SKU: M20
Price: 169.51 GBP
Availability: InStock

Brand: Newton Waterproofing Systems

Product Code: M20

In Stock

Newton Newtonite is a high-quality damp proof membrane used as an alternative membrane where a meshed surface is not required. Quick to apply, rot-proof and easy to use, Newton Newtonite is typically used where the wall finish to the damp-proof membrane is timber battens, a dry-lining frame, or block wall. Newton Newtonite is supplied as a 2m x 20m roll.

£203.41 incl. VAT

£169.51 excl. VAT

Newton Newtonite is a high-quality damp proof membrane for use above ground as an alternative to Newtonite Lath Mesh Membrane where a meshed surface is not required as a surface for direct plastering or rendering – typically where the wall finish to the damp proof membrane is timber battens, a dry-lining frame or block wall.

Key Benefits:

Isolation of wall finish from the damp wall.
Does not require extensive and damaging preparation to the wall surface.
Speed of installation.
Resistant to efflorescing salts and hydrocarbon contamination.
Rot-proof.
Shallow stud profile for where space is at a premium.

Typical Applications:

As a damp-proof membrane to isolate the wall finish from the damp wall where a meshed surface for plaster or render is not required.
Newton Newtonite (Non-Meshed) is available in rolls of 2m x 20m = 40m2.

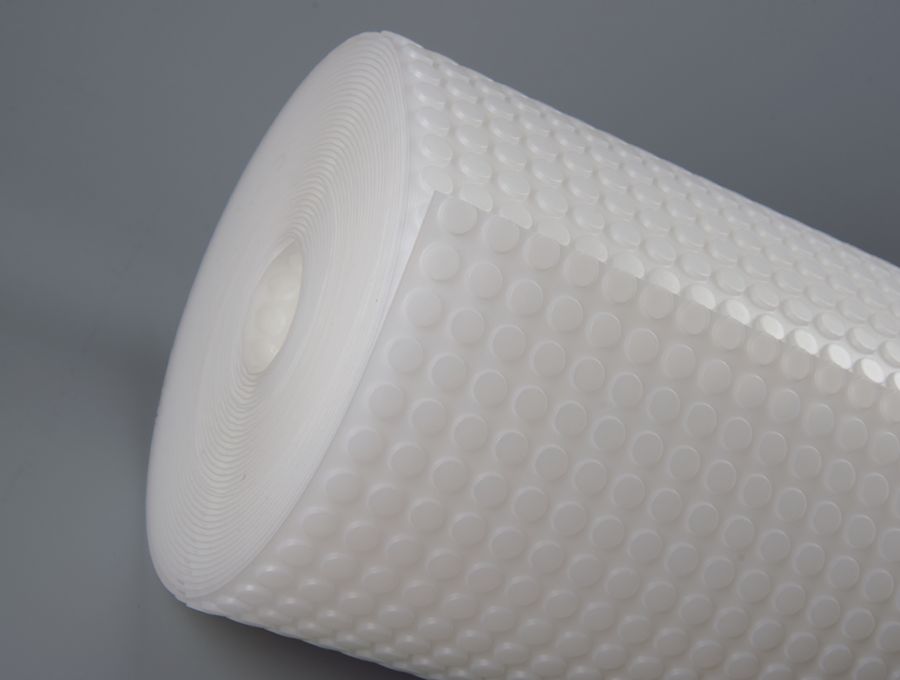

Newton Newtonite is typically used where the wall finish to the damp-proof membrane is timber battens, a dry-lining frame or block wall. Newton Newtonite is 0.5mm thick and has a pattern of raised 3mm studs. The studs face the wall and create air channels that allow for vapour equalisation to take place between the membrane and the wall.
Newton Newtonite is light, clean and easy to handle. It can be cut with a sharp knife, scissors or shears. The membrane is inert and is highly resistant to water, alkalis, saline solutions and organic acids, and it is not affected by minerals. It is also resistant to bacteria, fungi and other small organisms.
Newton Newtonite is guaranteed against deterioration for 30 years, and has a life expectancy of at least 50 years (DIN 9001:2000).

Features	Result	Units
Material	HDPE
Colour	White/translucent
Density	500	g/m2
Width	1.0/2.0	m
Length	10 / 20	m
Area	10 / 40	m2
Membrane thickness	0.60	mm
Stud depth	2.90	mm
Height	3.50	mm
Vicat softening temperature	126	ºC
Packaged weight	23.0	kg
Service temperature	-40 to +80	ºC

Installed Performance	Result	Units	Test Method
Thermal conductivity	0.461	W/mK	EN 12667
Water vapour diffusion resistance – Sd value	>604	m	BS EN 1931
Water vapour diffusion resistance – µ value	>1208000	µ	Calculated from SD value
Water vapour diffusion resistance	>3020	MNs/g	Calculated from SD value
Resistance to fire	Euroclass E		BS EN 13501-1
Chemical resistance – Excellent	100	%	EN14030
Oxidation resistance – Excellent	100	%	EN ISO 13438

DoC: Newtonite Damp Proofing Membrane
DoP: Newtonite Damp Proofing Membrane
Data Sheet: Newtonite Damp Proofing Membrane
