Newton NewSeal 408 DeckDrain Drainage Membrane - 2m x 20mNewton NewSeal 408 DeckDrain Drainage Membrane - 2m x 20m

Newton NewSeal 408 DeckDrain Drainage Membrane – 2m x 20m

Brand: Newton Waterproofing Systems
Product Code: M33
In Stock

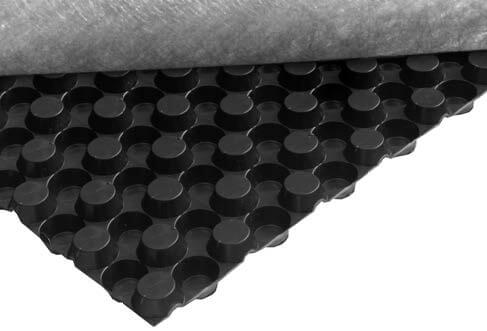

Newton NewSeal 408 DeckDrain is a double cuspated, deck and flat roof drainage membrane, that incorporates a geotextile filter layer bonded to an impermeable HDPE core. The double cuspated design provides two layers of drainage.

£302.03 incl. VAT
£251.69 excl. VAT

Qty:

Drainage Membrane for Decks and Flat Roofs. Newton NewSeal 408 DeckDrain is a double cuspated, deck and flat roof drainage membrane, that incorporates a polypropylene geotextile filter layer, bonded to a water impermeable HDPE (High Density Polyethylene) core. The double cuspated design provides two layers of drainage.

Key Benefits:

  • Provides a clear and clean drainage path for surface water to roof drainage outlets.
  • Double cuspated (drainage studs to the upper and lower surfaces) design provides a clear and clean drainage path above the deck waterproofing membrane, to ensure that water cannot be trapped above the deck membrane, as can be the case with single cuspated deck drainage membranes. S
  • uspended soil particles (fines) are filtered out by the geotextile layer.
  • Quick and easy to install.

Typical Applications:

  • As the drainage layer above a deck, balcony or flat roof waterproofing membrane, particularly where:
  • Block paving or flooring slabs are bedded on sand as the surface finish.
  • Soil filled planters are included to the deck or flat roof.
  • An Intensive Green Roof is planted to the deck or flat roof.

Also suitable for use as a vertical drainage layer when used as part of a professionally designed and installed externally applied basement waterproofing system.

Suitable Substrate:

  • Directly above primary deck or roof waterproofing membrane.
Features – Studded core Result Units
Material HDPE
Colour Black
Density 604 g/m2
Stud depth – Double cuspated 7.1 mm
Height 7.3 mm
Vicat softening temperature 148 ºC
Width 2.0 m
Length 20.0 m
Area 40 m2
Thickness 8.4 mm
Density 710 g/m2
Packaged weight 30.0 kg
Service temperature -40 to +80 ºC
Installed Performance Result Units Test Method
Compressive strength – Temporary loading 280 kPa EN ISO 25619-2
Compressive strength – Permanent loading 10 kPa EN ISO 25619-1
Water vapour diffusion resistance – Sd value >604 m BS EN 1931
Water vapour diffusion resistance – µ value >1208000 µ Calculated from SD value
Water vapour diffusion resistance >3020 MNs/g Calculated from SD value
Tensile strength (Machine direction) 13.6 kN/m2 EN ISO 10319
Tensile strength (Cross direction) 14.7 kN/m2 EN ISO 10319
Chemical resistance – Excellent 100 % EN14030
Oxidation resistance – Excellent 100 % EN ISO 13438
