Newton HydroTank 315 WaterbarNewton HydroTank 315 Waterbar

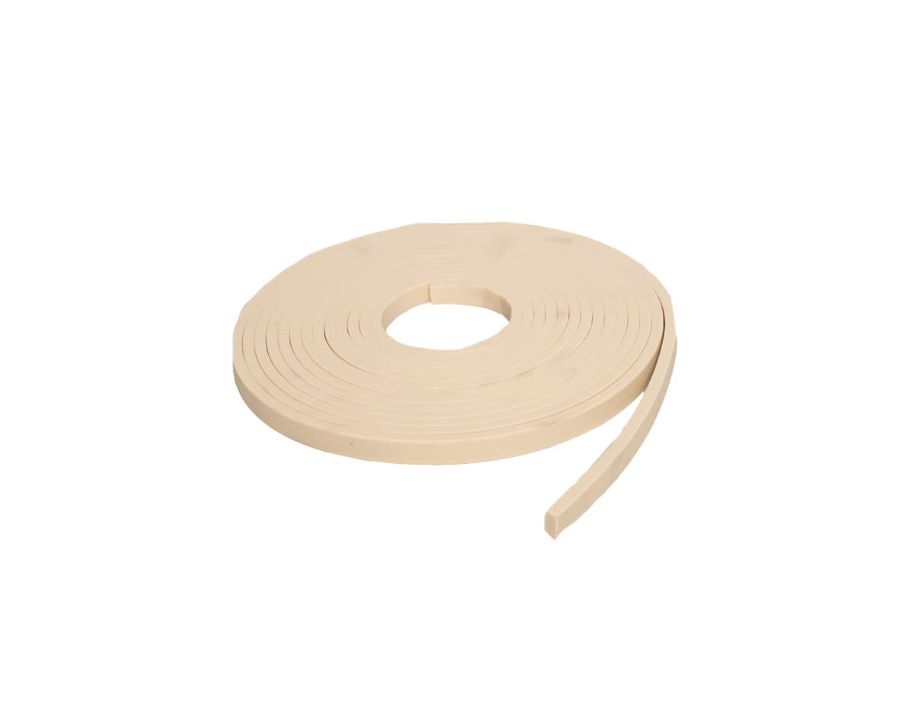

Newton HydroTank 315 Waterbar – 5mm x 20mm x 20m

Brand: Newton Waterproofing Systems
Product Code: 315-5
In Stock

Newton HydroTank 315 Waterbar is a high grade, hydrophilic waterbar with high elasticity and high tensile strength, measuring 5mm x 20mm x 20m. Ideal for sealing structures against water leaks to both cast-in-place concrete and precast construction joints.

£96.61 incl. VAT
£80.51 excl. VAT

Qty:

High Grade Hydrophilic Waterbar – 5mm x 20mm x 20m.Newton HydroTank 315 Waterbar is a high grade, hydrophilic waterbar with high elasticity and high tensile strength, made from a polymer which swells in contact with moisture. Ideal for sealing structures against water leaks to both cast-in-place concrete and precast construction joints.

The swelling is achieved through hydrophilic acrylate polymers, which are inseparably embedded within the butylene carrier material. This results in high elasticity and exceptional tensile strength, even when fully expanded within the joint.

Due to its high resistance to acids, alkalis and organic solutions, HydroTank 315 Waterbar can be used to seal joints where aggressive water is expected such as within sewage treatment plants, biogas plants and liquid waste holding tanks.

HydroTank 315 Waterbar swells up to 9 times its original size when in contact with water, sealing the joint fully and reliably. The product is particularly suited to sealing non-compressed joints such as at the junction between slab and wall.

Key Benefits

  • Resistant to permanent water pressure of 2 bar.
  • Delayed swelling – will not swell during the installation process or during the concrete cure.
  • Swells up to 9 times its original size.
  • Very resistant to the high alkalinity of concrete.
  • Maintains very high elasticity and tensile strength, even when swollen.
  • Age resistant, no embrittlement.
  • Resistant to sewage, chlorine and sulphur.
  • Retains integrity even through many wet/dry cycles.

Typical Applications:

  • Sealing construction joints against water leaks to:
  • Concrete and steel intensive structures.
  • Sewage and waste water tanks.
  • Reservoirs.
  • Biogas plants.
  • Underpinning.

Suitable Substrates

  • Concrete.
  • Steel.
  • Brick or concrete block.
  • Ceramic.
  • Plastic.
Features Results Units
Material TPE with hydrophilic polymers
Colour White
Density/Specific gravity 1.26
Profile 20 x 10, 20 x 5 and 20 x 2 mm
Coil length 10 and 20 Metres
Shelf life 24 Months
Hardness Shore A 26
Melting point 110 °C
Application temperature 5 to 40 °C
Service temperature -30 to +60 °C
Minimum required concrete cover 80 and 50 mm
VOC content None
Installed Performance Result Units Test Method
Initial delay of swelling 24 to 72 Hours
Full swell achieved 28 Days
Increase in mass (Neutral water – 7 pH) 900 % MFPA*
Increase in mass (High alkaline water – 12.5 pH) 350 % MFPA*
Increase in mass (Aggressive water – DIN 4030) 330 % MFPA*
Max swelling pressure (confined within joint) 2.8 N/mm2 MFPA*
Water resistance (tested) 5.0 bar MFPA*
Working water resistance (safety factor of 2.5) 2.0 bar MFPA*
Reaction to fire classification B2 Euroclass DIN 4102-1:1998-05
