Newton HydroBond 410 GeoDrain External Drainage Membrane - 2m x 12.5mNewton HydroBond 410 GeoDrain External Drainage Membrane - 2m x 12.5m

Newton HydroBond 410 GeoDrain External Drainage Membrane – 2m x 12.5m

Brand: Newton Waterproofing Systems
Product Code: M18
In Stock

Newton HydroBond 410 GeoDrain is an externally applied drainage membrane. The two-core drainage sheet protects external waterproofing membranes and prevents water bearing against the structure of an externally applied waterproofing system.

£209.33 incl. VAT
£174.44 excl. VAT

Qty:

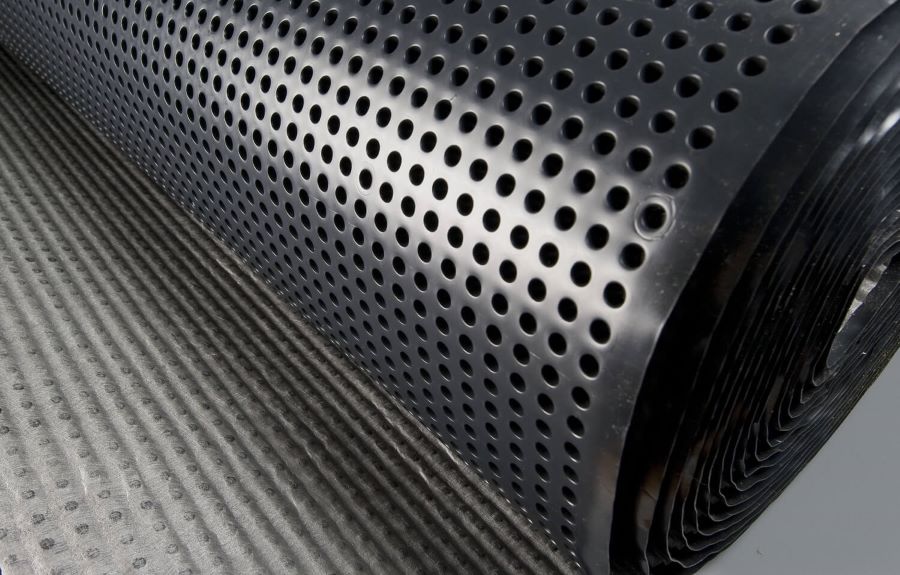

Externally applied drainage membrane. Newton HydroBond 410 GeoDrain is a two-core drainage sheet consisting of a non-woven geotextile filter layer thermally welded to a water impermeable HDPE (High Density Polyethylene) drainage membrane.

Key Benefits:

  • Assists in moving water around and downhill of the structure to sloping sites to prevent water pressure from bearing against the structure
  • Resistant to all chemicals normally found in the ground
  • Withstands stresses and movement acting as a slip membrane as the backfill settles
  • Allows for backfilling with excavated earth
  • Extremely strong material, minimising the risk of damage when backfilling even when no protection board is used
  • Very high compressive strength
  • Suspended soil particles (fines) are filtered out by the geotextile layer
  • Quick and easy to install with a range of ancillary fixing and installation products

Typical Applications:

  • To prevent water bearing against the structure of an externally applied waterproofing system to sloping sites when used in conjunction with sheet applied or liquid applied external tanking membrane to BS 8102:2022
  • Protection of the structure from aggressive chemicals in the ground water to sloping sites
  • Protection of the waterproofing membrane

Primary Waterproofing Membranes:

HydroBond 410 GeoDrain is a drainage membrane, not a waterproofing membrane.

Primary waterproofing of the structure should be achieved with one of the following products:

  • HydroBond 403 Plus is a very high performance composite sheet membrane
  • A suitable Newton liquid applied waterproofing membrane

Packaging:

HydroBond 410 GeoDrain is supplied in wrapped and labelled 12.5m long x 2.0m wide rolls.

Features – 410 GeoDrain Result Units
Width 2.0 m
Length 12.5 m
Area 25 m2
Density 610 g/m2
Packaged weight 20.0 kg
Service temperature -40 to +80 ºC
Installed Performance Result Units Test Method
Thickness at 2kPa 11.3 mm EN ISO 9863-1
Water flow (in plane) 3.50 l/m2/s EN ISO 12958
Water flow through Geotextile 350 l/m2/s BS 6906-3
Compressive strength – Temporary loading 420 kPa EN ISO 25619-2
Water vapour diffusion resistance – Sd value >604 m BS EN 1931
Water vapour diffusion resistance – µ value >1208000 µ Calculated from SD value
Water vapour diffusion resistance >3020 MNs/g Calculated from SD value
Tensile strength (Machine direction) 15.4 kN/m2 EN ISO 10319
Tensile strength (Cross direction) 16.8 kN/m2 EN ISO 10319
Chemical resistance – Excellent 100 % EN14030
Oxidation resistance – Excellent 100 % EN ISO 13438
