Newton FlexProof 106 X1 Joint Waterproofing - 15kg TubNewton FlexProof 106 X1 Joint Waterproofing - 15kg Tub

Newton FlexProof 106 X1 Joint Waterproofing – 15kg Tub

Brand: Newton Waterproofing Systems
Product Code: 106B
In Stock

Newton FlexProof 106 X1 is a liquid waterproofing material which forms an elastomeric polymer membrane. The X1 variant is thixotropic, suitable as a surface sealant over joints. Supplied as a 15kg tub.

£412.63 incl. VAT
£343.86 excl. VAT

Qty:

Flexible Construction Joint Waterproofing. Newton FlexProof 106 X1 is a highly advanced, single-component liquid waterproofing material, which forms an elastomeric polymer membrane that is rainproof in minutes and capable of handling severe building movements and deformations.

The FlexProof 106 System is composed of two variants of the product, plus ancillaries:

  • X1 – A thixotropic variant that is applied as a paste and so is suitable as a surface sealant over joints.
  • NV – A lower viscosity variant that can be poured and is typically used within movement joints.
  • FlexProof 106 Primer (Product code: 916) – Improves adhesion to porous surfaces.

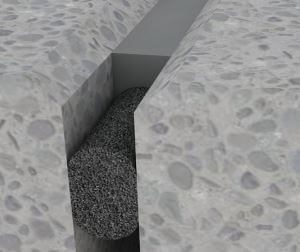

  • FoamStop (Product codes: FS1 to FS8) – Foam backing rod for movement joints.
  • The animation to the right shows the correct application of FlexProof 106-X1 to a concrete construction joint.

Key Benefits:

  • No mixing required – simply open the packaging and use.
  • No primer required – saving on primer and labour costs.
  • 100% waterproof, but allows vapour diffusion.
  • Very flexible – Resistant to movement and fissures in substrate.
  • Excellent adhesion to suitable substrates.
  • Resistant to temperature variations maintaining its characteristics between -40ºC & 90ºC.
  • Excellent resistance to the high alkalinity of concrete.

Suitable For:

  • FlexProof 106 X1 – Static construction joints in poured concrete retained structures.
  • FlexProof 106 NV – Non-static construction joints to precast concrete elements within retained structures.
Features Result Units
Form (paste) Medium viscosity
Colour Grey
Density / Specific gravity 1.54
Packaging – foil bag within bucket 15 kg
Packaging – cartridge 290 ml
Shelf life 12 Months
Pot life 6 Months
Application rate – over joints 3.85 kg/m2
Application rate – not to joints 3.0 kg/m²
Application rate – movement joints Depth of 50% of the joint width
Application method Trowel/putty knife. Brush for detailing
Minimum application temperature – substrate* +1 (and rising) ºC
Maximum application temperature – air +35 ºC
Service temperature -40 to +90 ºC
Odour Slight polymer
VOC None
Curing* 5ºC 10ºC 15ºC 20ºC 25ºC Units
To not be adulterated by light rain 15 12 10 10 5 Minutes
To not be adulterated by heavy rain 20 17 15 15 10 Minutes
Ready for protection boards 30 27 25 25 20 Minutes
Fully cured 5 4 4 3 3 Days
Cured Performance Result Units Test Method
Colour Grey
Membrane thickness – over joints 2.5 mm
Membrane thickness – not over joints 2.0 mm
Adhesion to concrete >450 KPa EOTA TR-003
Tensile strength 1.25 N/mm² BS EN 13813:2002
Elasticity when breaking – 2 mm film 250 % DIN EN 12311-2
Resistance to dilute acid/alkaline Excellent DIN EN 1928
Shore Hardness – A 40
Watertightness See data table on page 4 DIN EN 1928
UV Resistance** 10 Years EN ISO 11431:2002
Reaction to fire classification – Euroclass E DIN EN 13501-1

The above data, even if carried out according to regulated tests are indicative and may change when specific site conditions vary. *Figures are for 2.5 mm coating and are influenced by humidity and are therefore, indicative.
** EN ISO 11431:2002 specifies a method for the determination of the adhesion/cohesion properties of sealants after cyclic exposure to heat and artificial light followed by a period of exposure to water at a defined temperature. The 10-year figure is an extrapolation of the results of these tests. The product may weather to with a slight yellow tint, but the product itself will not be affected.
