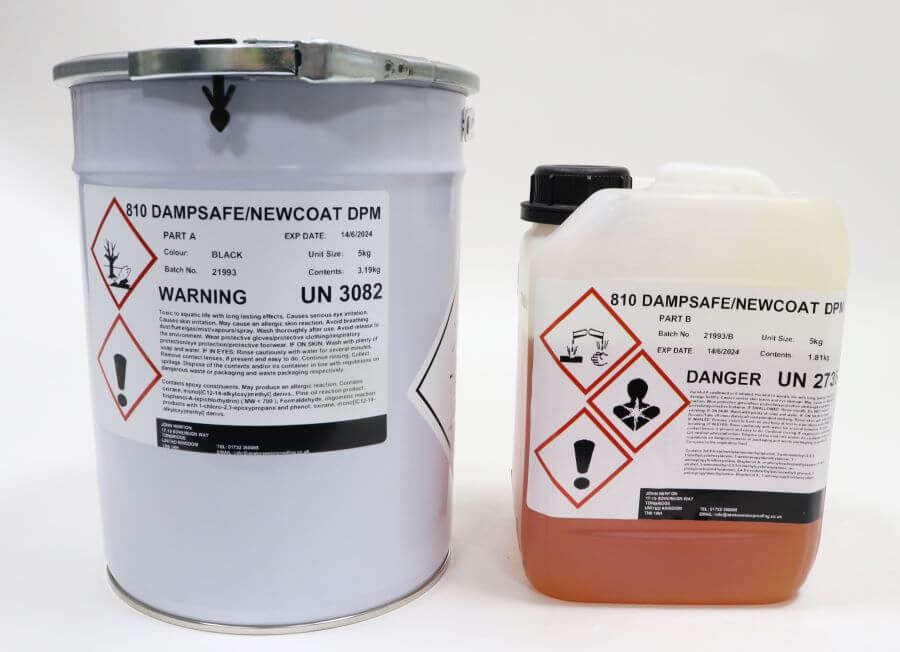

Damp Tolerable Epoxy DPM. Newton Epoxy DPM is a two-part, solvent-free, damp-tolerable, epoxy-based damp-proof membrane (DPM) that suppresses residual construction moisture and rising dampness in concrete and sand/cement screeds and can be used in situations where the relative humidity level is above 85%. The product is also available in a 10kg pack size.
The high quality, low viscosity formulation is suitable for application onto damp substrates, allowing for the speedy application of flooring, coatings, membranes, levelling compounds and screeds.
Newton Epoxy DPM is quick and simple to use and can be applied over cementitious screeds and concrete. It is applied by brush or roller in two different coloured, gloss coats, or in just one coat if applied above the Newton Epoxy Primer.
Key Benefits:
- Very damp tolerable.
- Can be applied to concrete and screed 7 days after placement.
- Solvent free.
- Excellent vapour barrier.
- High-bond DPM that provides a barrier to vapour and prevents osmotic blistering.
Typical Applications:
Priming of damp, non-porous concrete and screed to provide a DPM and vapour barrier, prior to the application of moisture-sensitive flooring, coatings, membranes, levelling compounds and screeds in the following scenarios:
- Car parks
- Warehousing and storage
- Garages
- Plant rooms
Suitable Substrate:
Correctly formed, compacted and prepared:
- Concrete of at least 7 days old
- Screed of at least 7 days old
Features |
Result |
Units |
Form – Two component |
Low viscosity epoxy resin |
|
Colour |
Black |
|
Specific gravity |
1.10 |
|
Product weight |
5.0 / 10.0 |
kg |
Packaged weight |
5.2 / 10.2 |
kg |
Yield per kg |
0.9 |
litres |
Application rate – First coat |
0.25 to 0.28* |
kg/m2 |
Application rate – Further coats or over Epoxy Primer |
0.20 |
kg/m2 |
Shelf life |
12 |
Months |
Pot life @ 20ºC & RH of 40% |
20 |
Minutes |
Minimum application temperature – Substrate |
+8 (and rising) |
ºC |
Maximum application temperature – Air & Substrate |
+30 |
ºC |
Service temperature |
-15 to +50 |
ºC |
Odour |
Ammonia smell when mixing |
|
VOC content |
< 100 |
g/litre |
Drying*** |
8ºC |
10ºC |
15ºC |
20ºC |
25ºC |
Units |
Inter-coat adhesion window |
15-48 |
13-40 |
12-30 |
11-28 |
9-24 |
Hours |
Ready for temporary traffic |
16 |
14 |
14 |
12 |
10 |
Hours |
Cured Performance |
Result |
Units |
Test Method |
Colour |
Black |
|
|
Membrane thickness – First coat |
0.23 |
mm |
|
Membrane thickness – Further coats |
0.23 |
mm |
|
Adhesion to concrete (>B2.0) |
3.5 |
MPa |
BS EN 13892-8 |
Water vapour transmission rate – UK Perm |
0.097 |
g/m²/24 hrs |
EN 1504-2 |
Water vapour diffusion resistance – Sd value |
147.58 |
m |
Calculated from UK Perm |
Water vapour diffusion resistance – µ value |
451656 |
µ |
Calculated from UK Perm |
Water vapour diffusion resistance |
737.90 |
MNs/g |
Calculated from UK Perm |
Methane permeability |
1.02** |
ml/m2/d |
ISO 15105-1 |
CO₂ permeability |
1.35** |
ml/m2/d |
ISO 15105-1 |
Reaction to fire classification – Not determined |
F |
|
Euroclass |
The above data, even if carried out according to regulated tests are indicative and they may change when specific site conditions vary. *Depending on substrate porosity.
** At normal thickness of 0.5mm. ***Figures are influenced by humidity also and so are indicative.
