Newton DampSafe 809 HP DPCNewton DampSafe 809 HP DPC

Newton DampSafe 809 HP DPC – 450mm x 20m

Brand: Newton Waterproofing Systems
Product Code: 809-450
In Stock

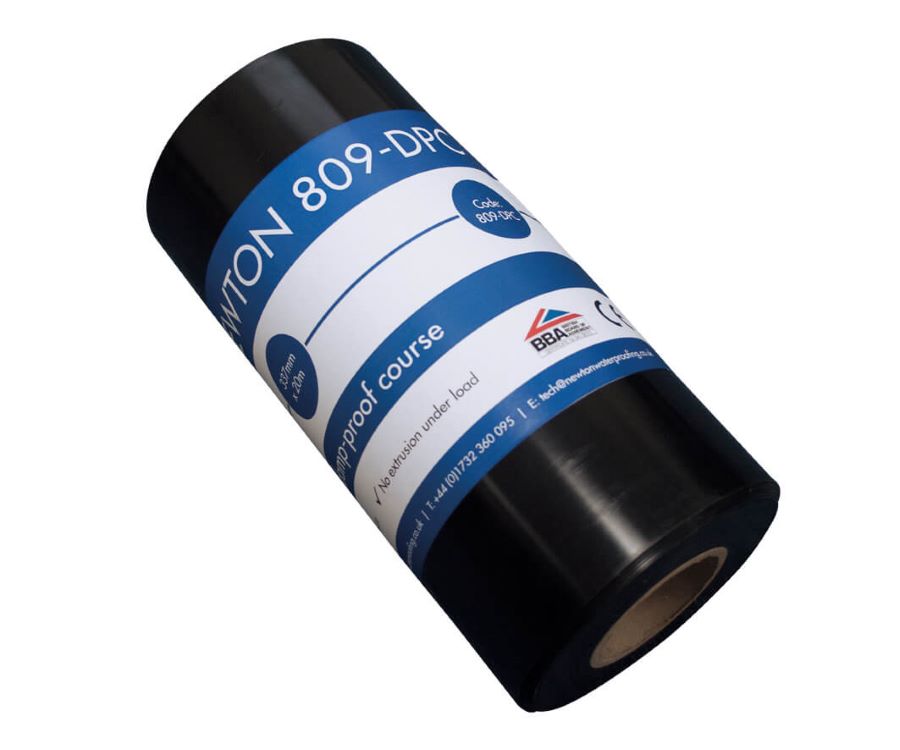

Newton DampSafe 809 HP DPC is a high-performance, radon-rated DPC which will not extrude under load. Available in 20-metre rolls and in eight widths from 100 to 900 mm – this option is 450mm wide.

£39.01 incl. VAT
£32.51 excl. VAT

Qty:

High Performance Physical Damp Proof Course. Newton DampSafe 809 HP DPC is a high-performance, radon-rated DPC which will not extrude under load, up to the point of the compressive failure of the wall. It will also not adversely affect the ability of a properly designed and built wall to sustain and transmit compression. Available in 20-metre rolls and in eight widths from 100 to 900 mm – this option is a 450mm x 20m roll.Β

DampSafe 809-HP DPC is compatible with all commonly used building materials and is suitable for horizontal, vertical and stepped damp proof courses, including cavity trays, in cavity or solid masonry walls, and is also suitable for extending the floor membrane through internal and spine walls within the Newton CDM System for cavity drain waterproofing.

Key Benefits:Β

  • Extremely tough and durable Will not deform or extrude under high compressive loadsΒ
  • Complete system includes cloaks and accessoriesΒ
  • Flexible at low temperaturesΒ
  • Resistant to shrinkageΒ
  • Effective barrier to water and water vapourΒ
  • Bond of DampSafe 809-HP DPC is greater than the bond between mortar and brickΒ

Typical Applications:

  • Horizontal, vertical and stepped damp-proof coursesΒ
  • As part of the Newtonite Damp Proofing System when used in conjunction with Newtonite System damp proofing membranesΒ
  • As part of the Newton CDM Waterproofing System when used in conjunction with Newton’s cavity drain waterproofing membranes

Suitable Substrate:Β

  • Brick & BlockΒ
  • StoneΒ
  • ConcreteΒ
  • High load insulated wall courses such as Marmox Thermoblock and Foamglas Perinsul
Features Result Units Test Method
Material Embossed thermoplastic polymer
Colour Black
Visible faults None BS EN 1850-2
Length (+/-5%) 20 m BS EN 1848-2
Width (+/-5%) (mm) 100, 150, 225, 300, 450, 600, 900 BS EN 1848-2
Thickness (+/-5%) 0.75 mm BS EN 1848-2
Density (+/-5%) 830 g/mΒ² BS EN 1848-2
Installed Performance Result Units Test Method
Resistance to static load (10 mm steel ball) 20 kg BS EN 12730
Resistance to impact BS EN
Shear resistance of joints – longitudinal 100 N/mmΒ² BS EN 12317-2
Shear resistance of joints – traverse 250 N/mmΒ² BS EN 12317-2
Durability (Alkali, Annex C – 50% elongation) Pass BS EN 12113-2 / 1928
Elongation at break – longitudinal 810 % BS EN 12311
Elongation at break – traverse 840 % BS EN 12311
Resistance to tearing (nail shank) – longitudinal 170 N BS EN 12310-1
Resistance to tearing (nail shank) – traverse 180 N BS EN 12310-1
Flexibility at low temperatures ≀ 40 oC BS EN 495-5
Durability against heat ageing – 60 kPa Pass BS EN 1928 / 1296
Radon permeability 18 x 10-12 m/s K124/0295
Radon transmittance 21 x 10-12 m/s K124/0295
COΒ² permeability 1.59 x 10-16 mΒ²/s/Pa ISO 2782:1995
Water vapour diffusion resistance -Sd – value 350 m BS EN 3177
Reaction to fire (Euroclass) E BS EN 13501-1
