Newton CDM Fibran XPS 500-C - 4.8m2 Pack of Closed-Cell Insulation BoardsNewton CDM Fibran XPS 500-C - 4.8m2 Pack of Closed-Cell Insulation Boards

Newton CDM Fibran XPS 500-C – 4.8m2 Pack of Closed-Cell Insulation Boards

Brand: Newton Waterproofing Systems
Product Code: 500C
In Stock

Newton CDM Fibran XPS-500C is a 50mm deep, closed-cell thermal insulation board, used to form a 50mm spacer adjacent to the CDM BaseDrain and CDM FloorDrain drainage channels within the Newton CDM System cavity drain waterproofing system.

PRICE ON APPLICATION. Please contact a member of the BaseTec team for further information.

£0.00 incl. VAT
£0.00 excl. VAT

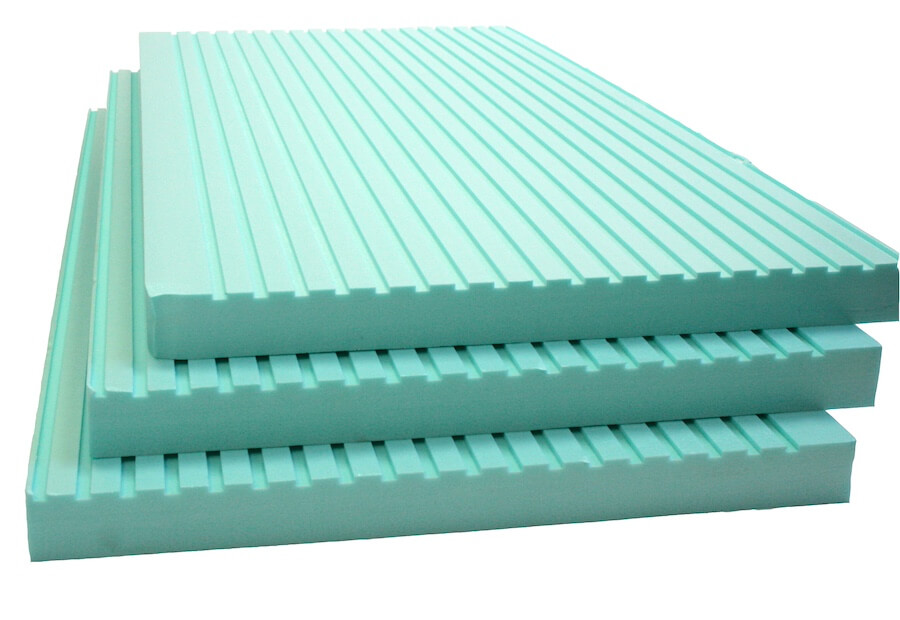

Closed-Cell Slotted Insulation Board. Newton CDM Fibran XPS-500C is a 50mm deep, closed-cell thermal insulation board made from rigid extruded polystyrene foam (XPS).

The product is manufactured in accordance with EN 13164 – “Thermal insulation products for buildings – Factory made products of extruded polystyrene (XPS)-specification.”

Newton CDM Fibran XPS-500C has been certified to ISO 14025 standard with an Environmental Product Declaration (EPD). This reports the full value chain from material extraction to the manufacturing of the product, usage and end of life, declaring the products environmental impact from a lifecycle perspective.

Produced exclusively for Newton Waterproofing Ltd, CDM Fibran XPS-500C insulation boards are used to form a 50mm spacer adjacent to the CDM BaseDrain and CDM FloorDrain drainage channels within the Newton CDM System cavity drain waterproofing system. The insulation boards are rated at 500 kPa and feature specifically designed slots to the underside of the boards, that in combination with the perimeter and spine drainage channels of the Newton CDM System form a fully drained supporting spacer below the floor drainage membrane.

The insulation boards can also be used as a protection for Newton liquid applied waterproofing membranes applied externally to new earth-retained structures or retained walls, uniquely offering protection, insulation and drainage within one product.

Key Benefits:

  • Excellent thermal insulation characteristics with a very low coefficient of thermal conductivity
  • Closed cell structure with no connecting capillaries resulting in extremely high resistance to water absorption and diffusion of water vapour
  • Capable of permanent submersion in water
  • Fully inert when subjected to climatic variations
  • High mechanical and compressive strength and high dimensional stability
  • Does not contain CFC or HCFC’s
  • Life expectancy is equivalent to the building in which it is installed (estimated 50 years)
  • 100% recyclable
  • Easy to transport, cut and apply
  • Completely rot proof and does not develop any mould or other efflorescence
  • No nutritional value for rodents, insects, etc
  • Good resistance to acids, alkalines, aggressive ground containments and inorganic gases

Typical Applications:

  • As the spacer below Newton cavity drain waterproofing floor membranes
  • Protection of Newton liquid applied waterproofing membranes applied externally to retained walls.
  • Insulated support below HydroBond 403 Plus
  • Parking decks and green roofs
  • Full external envelope insulating of subterranean structures sited permanently within the water table

Suitable Substrate:

  • Compacted, clean, and level surfaces
  • Basement concrete floor slabs and rafts
  • Earth retained walls of concrete, mortar or ICF
  • Compacted blinding
Features Result Units
Form Rigid board
Colour Green
Surface Slotted
Profile Square edge
Density/Specific gravity 0.03
Board size 50 x 1000 x 600 mm
Board yield 0.60 m2
Pack size 8 Boards
Pack yield 4.8 m2
Properties Result Units Test Method
Compressive strength at 10% deformation* 500 kPa EN 826
Compressive creep over 50 years at < 2% deformation 165 kPa EN 1606
Service temperature -50 to +75 °C
Thermal conductivity** 0.035 W/mk EN 12667
Thermal conductivity when fully immersed*** 0.040 W/mk EN 12667
Thermal resistance (after 25 years)**** 1.29 m2K/W EN13164
Water vapour resistance 80 μ EN13164
Specific heat capacity 1.5 kJ/(kg.K)
Long term water absorption by immersion***** 0.7 % ΕΝ 12087
Water absorption by diffusion 3 % ΕΝ 12088
Reaction to fire (Euroclass) Class E EN 13501-1
Global Warming Potential (GWP) < 5 kg CO2 (Eq) EN 15804

The above data, even if carried out according to regulated tests, are indicative and they may change when specific site conditions vary. *Short term test
loads only. **After 25 years. ***When permanently and totally immersed in water for 25 years. **** Calculated using nominal thickness of 45 mm due to
grooved surfaces. ***** Smooth surface.

Please see our our Delivery policy page for full details of our delivery terms and conditions, including information on exclusions, geographical restrictions, third parties, and failed deliveries.

1. Delivery Timescales

We will endeavour to deliver all orders within 1-3 working days (subject to geographical restrictions). Please note, where delivery lead-times for individual orders may be subject to change, we will keep you informed directly by phone or email within 24 hours of your order being placed.

Deliveries will not be made on UK bank holidays, and in such cases will fall on the next working day.

Standard delivery hours are between 8am and 6pm, Monday to Friday. If you are not available to accept the delivery when it is attempted, then a failed delivery charge will be applied (see the Delivery page for full details)

2. Delivery Fee Structure:

All orders, excluding those containing products covered in section 3 below, will be subject to the below delivery fee structure:

  1. Total order weight is between 0kg and 10kg = £7.99 standard delivery fee
  2. Total order weight is between 10kg and 20kg = £12.99 standard delivery fee
  3. Total order weight is between 20kg and 75kg = £20 standard delivery fee
  4. Total order weight is 75kg and above = £60 large order delivery fee
  5. Total order value exceeds £500 (regardless of weight) = Free delivery

3. Exclusions

The delivery fees detailed above apply to all orders, excluding:

  1. Orders containing insulation will be charged at £65 per pallet (10 units per pallet). Please get in touch with us directly for pricing and ordering.
  2. Orders containing protection boards: A large order delivery fee of £60 will be applied.
  3. Orders containing membranes of two metres wide and above: The delivery fee will be calculated as a price per unit*.
Code Description Weight (kg) Delivery Fee Per Unit
Multiple All membrane products with a width of two metres and above Varied £20

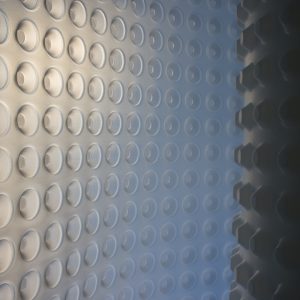

M3 Newton CDM 508 Mesh 29.26 £25
M2 Newton CDM 508 eco Floor 41.3 £30

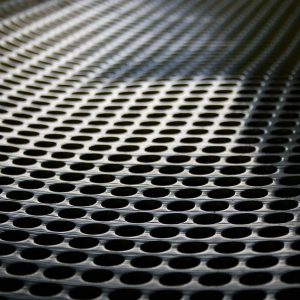

M4 Newton CDM 520 eco Floor 37.62 £40
