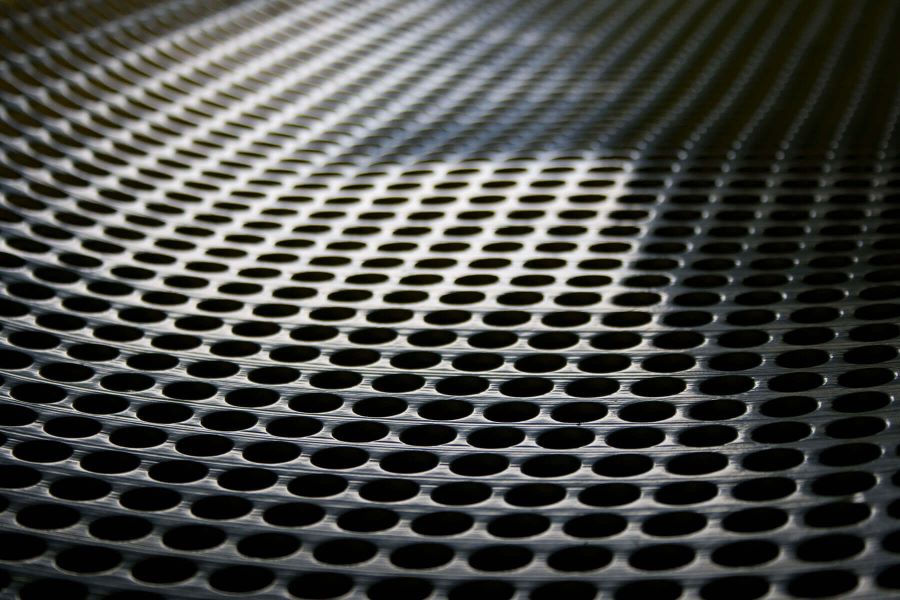

20mm Recycled Cavity Drain Basement Floor Membrane. Newton CDM 520 eco is a high quality and 100% recycled, 20mm cavity drain floor membrane, for use within the Newton CDM System, an internally applied waterproofing system that also includes drainage and pumping systems.
With its 20 mm deep stud profile, Newton CDM 520 eco is used within the Newton CDM System as a high drainage capacity floor membrane, and is generally specified where it is anticipated that there may be a risk of severe water penetration.
Newton 520 eco is guaranteed against deterioration for 30 years, with a life expectancy of at least the design life of the building (DIN 9001:2000) and is supported by BBA Certification Number 94/3010. Newton 520 eco is inert and, therefore, non-polluting to drinking water, highly resistant to water, alkalis, saline solutions and organic acids, and not affected by minerals and hydrocarbons. It is also impervious to root penetration, is rot-proof, and resistant to bacteria, fungi and other small organisms.
Key Benefits
- Third-party tested for long-term compressive load to ISO 25619-1 (2% compression over 50-years)
- Speed of installation
- Made from 100% recycled HDPE
Provides vapour control and, when used with humidity control systems and is capable of delivering an environment to all levels within a Grade 3 environment to BS 8102:2022
Resistant to rot, chemically aggressive groundwater, acids and alkalines, efflorescing salts and hydrocarbon contamination Product waste is recycled when returned to Newton Waterproofing by Newton Specialist Contractors
Typical Applications
- Floor membrane as part of the Newton CDM System
- Suitable Substrate
- Concrete raft or slab
- Newton Fibran XPS 500-C closed cell extruded polystyrene insulation
