Helifix ResiTie - Packs of 50Helifix ResiTie - Packs of 50

Helifix ResiTie – 6mm x 325mm – Packs of 50

Brand: Helifix
Product Code: HX-REST-6/325
In Stock

Helifix ResiTie 6mm x 325mm remedial wall tie with a resin/resin fix. A remedial wall tie used where a resin bonding is required at both tie ends. The tie is manufactured from from austenitic stainless steel Grade 304 (1.4301) or 316 (1.4401).

£182.93 incl. VAT
£152.44 excl. VAT

Qty:

Remedial Wall Tie with a Resin/Resin Fix. Helifix ResiTie is a remedial wall tie used where a resin bonding is required at both tie ends. The tie is manufactured from from austenitic stainless steel Grade 304 (1.4301) or 316 (1.4401).

It is available in lengths including: 155mm, 170mm, 195mm, 220mm, 245mm, 270mm, 295mm and 325mm in packs of 50.

System Components (to be ordered separately):

  • ResiTies with plastic sleeves
  • Hand-held support tool
  • Load test unit and collet key
  • Drill bit for clearance hole
  • PolyPlus resin cartridge and extension nozzles

Installation:

  1. Mark the points for the Helifix ResiTies on the near leaf brickwork. Using a 10mm drill bit and rotary percussion drill, where possible, drill a clearance hole through the near leaf and 55mm into the far leaf. The hole should be drilled about half way up the brick and around 15mm from the end to avoid frogs and core holes

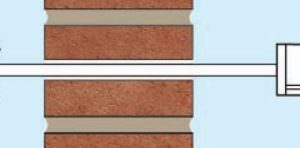

  2. Clean both holes of debris using a pneumatic spoil cleaner or an airjet
  3. Inject PolyPlus resin to fill the hole in the far leaf
  4. Using the hand-held support tool, insert the ResiTie, with plastic sleeves fitted, into the clearance hold until the far sleeve enters the far leaf
  5. After the resin has cured, security of fixing in the far leaf can be tested with a Helifix Load Test Unit
  6. Inject PolyPlus resin into the near leaf until the hole is filled and then make good the outer face

Applications:

  • Replacement tie for cavity walls where a resin bond is required at both ends of the tie
  • Recommended for small jobs requiring 200 ties or less
  • Pinning multi-layer masonry (with ties up to 300mm long)

Features:

  • Effective in all common building materials
  • Far and near leaf security of fixing easily proof tested
  • Flexibility accommodates normal building movement
  • Multiple drip points prevent transfer of water across cavity

Benefits:

  • Quick,easy, non-disruptive installation
  • Highly economical and effective
  • Minimal inconvenience to occupants
  • Leaves building virtually unmarked
  • No splitting of bricks and blocks
Technical Specifications
Material Austenitic stainless steel Grade 304 (1.4301) or 316 (1.4401)
Diameter 6mm
Length to be used ¾ of near leaf thickness + cavity width + 55mm
Length 325mm
Diameter of clearance hole 10mm
Depth of clearance hole in far leaf 55mm
Minimum fixing density Ties should be at 900mm centres horizontally by 450mm vertically, in a staggered pattern, or as specified
Bonding agent PolyPlus Resin
Recommended Tooling
For drilling clearance hole SDS hammer drill or rotary percussion drill, where possible
For installing ResiTie Helifix ResiTie hand held Support Tool
For injecting resin into far leaf Metal nozzle extension
For proof testing Helifix Load Test Unit
