Helifix DryFix 8 - Pack of 100Helifix DryFix 8 - Pack of 100

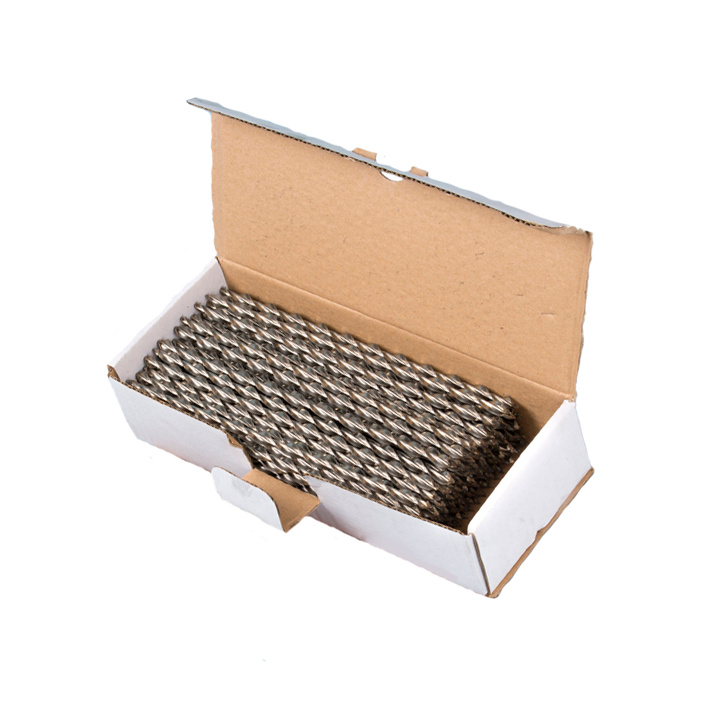

Helifix DryFix 8 – 8mm x 295mm – Pack of 100

Brand: Helifix
Product Code: HX-DF-8/295
In Stock

Helifix DryFix 8mm x 295mm dry mechanical pinning and remedial tying system. A versatile and rapidly installed mechanical pinning and remedial tying system that requires no resin, grout or mechanical expansion.

£454.70 incl. VAT
£378.92 excl. VAT

Qty:

Dry Mechanical Pinning and Remedial Tying System. Helifix DryFix is a versatile and rapidly installed mechanical pinning and remedial tying system that requires no resin, grout or mechanical expansion.

System Components (to be ordered separately):

  • Rotary percussion bits for drilling pilot holes (where necessary)
  • Load Test Unit and Pull Test Key
  • Special Power Driver Attachment for rapid installation
  • Power Driver Extension (where necessary)
  • DryFix ties – SDS Drill for installation

Installation:

  1. Drill small pilot hole using rotary percussion drill, 3-jaw-chuck type
  2. Load tie into DryFix Power Driver Attachment fitted to SDS hammer drill
  3. Drive in tie until outer end is fully recessed below face of masonry

 Applications:

  • Versatile replacement wall tie
  • For securing multiple layers of masonry
  • For pinning delicate masonry features

Features:

  • Requires no resin, grout or mechanical expansion
  • Slim, one-piece, grade 316 stainless steel tie
  • Quick, easy, non-disruptive installation using the Power Drive Attachment
  • Effective in bricks, blocks, concrete, hard mortar, timber
  • Effective in cavity and solid walls, hollow materials and close-to-edges
  • Installed tie is recessed below face of masonry
  • Usable in all weathers, temperatures and environments

Benefits:

  • Highly economical with low installed costs
  • Great tensile strength
  • Flexibility accommodates normal building movement
  • Multiple drip points prevent transfer of water across cavity
  • Can be installed through insulation without affecting its thermal performance
  • Leaves masonry virtually unmarked
  • Minimal inconvenience to occupants
Technical Specifications
Material Austenitic stainless steel Grade 304 (1.4301) or 316 (1.4401)
Diameter 8mm
Length to be used Near leaf thickness + cavity width + required penetration into the far leaf less required penetration of the PDA
Length 295mm
Depth of pilot hole Length of DryFix + 25mm (taking care to not penetrate through far leaf)
Minimum fixing density In accordance with project specification or check with Helifix Technical Department
Bonding agent None required
Near leaf material Far leaf material Near leaf pilot/clearance hole Far leaf pilot/clearance hole Penetration into far leaf Pull out (Proof load)
Clay brick Aircrete 5-6mm None 75-90mm 1.0kN
Clay brick Timber stud 5-6mm None 55mm 1.2kN
Clay brick Clay brick 5-6mm 5-6mm 70mm 2.0kN
Clay brick Concrete block 6mm 6mm 70mm 2.0kN
Clay brick Concrete 6mm 6-6.5mm (very hard concrete may require an Asymmetric tie or RetroTie or ResiTie) 35mm 2.0kN

IMPORTANT INFORMATION: All figures quoted are indicative dependent on the exact nature of the substrate. Testing should always be undertaken on site using the Helifix Load Test Unit. Compression Resistance should be checked with the Helifix Technical Department. Fixing Density should be calculated by the Helifix Technical Department.
