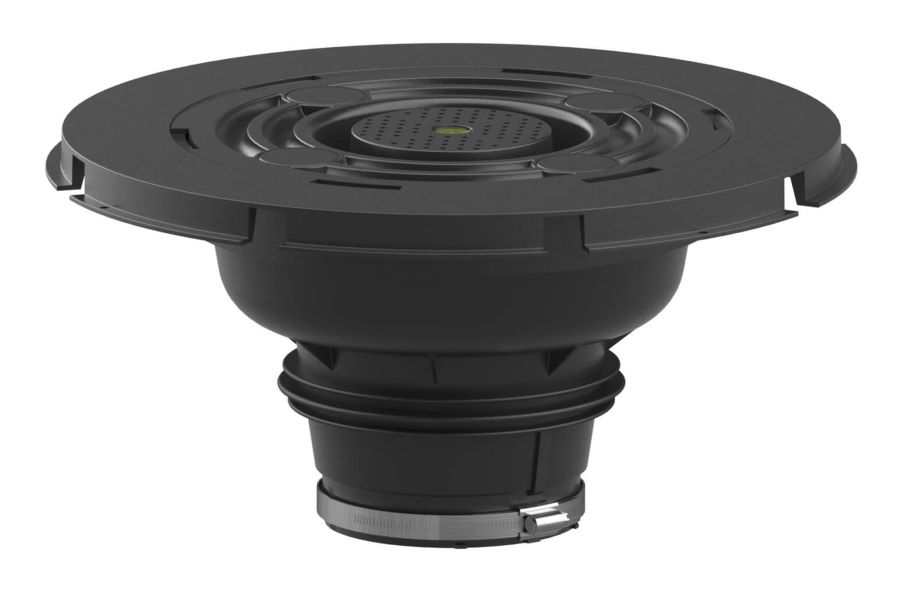

Hauff-Technik Tundish 110mm Waste Pipe Entry

Brand: Hauff-Technik
Product Code: 827001601
In Stock

Tundish waste pipe entry seal, with integrated step protection insert for setting base slab in concrete for optimum sealing to the underground sewer pipe. Compensates for an offset (after concreting) between the downpipe and the base drain in any direction.

£75.60 incl. VAT
£63.00 excl. VAT

Qty:

Tundish waste pipe entry seal, with integrated step protection insert for setting base slab in concrete for optimum sealing to the underground sewer pipe. Compensates for an offset (after concreting) between the downpipe and the base drain in any direction.

Advantages:

  • Saves rectangular recesses and therefore complex follow-up work
  • Simple on-site installation
  • Gas-tight and watertight connection to the base slab thanks to the integrated 3-ribbed seal
  • TPE sealing lips to seal underground sewage pipe
  • Step safe insert with perforation and dirt trap grooves can be used during construction to drain the base slab
  • Undercut for optimum fixing in concrete

Scope of delivery:

  • Clamping strap
  • Step safe insert

Dimensions:

  • Diameter 385 mm
  • For underground sewage pipe O 110 mm

Properties:

  • Built-in stop in tundish for exact pipe positioning

Application Range:

  • DIN 18533 W1-E
  • Waterproof concrete stress class 1
  • Waterproof concrete stress class 2

Material:

  • Step safe insert: PP
  • Funnel: ABS/TPE

Tightness:

  • Gas-tight – Watertight
  • Radon-tight

Tests/Standards:

  • KG 2000 pipes to DIN EN 14758
  • KG pipes to DIN EN 13476-2
Carrier pipe ∅a (mm) 110
Dimensions Diameter 385 mm
For underground sewage pipe ∅ 110 mm
Application range DIN 18533 W1.1-E, DIN 18533 W1.2-E
Waterproof concrete stress class 1, Waterproof concrete stress class 1
Material Step safe insert: PP
Funnel: ABS/TPE
Tightness Gastight and watertight
Radon tight
Tests/Standards KG 2000 pipes to DIN EN 14758
KG pipes to DIN EN 13476-2
