3030300072 HSD standard-press-seal-4052487129374-en-uk3030300072 HSD standard-press-seal-4052487129374-en-uk

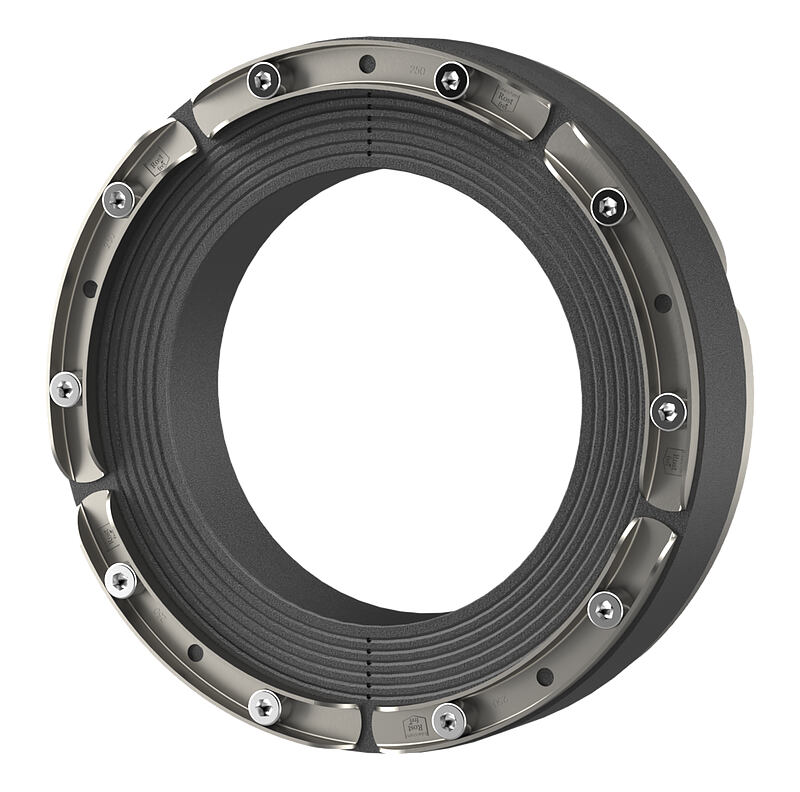

Hauff-Technik Press Seal – Fits 250mm Sleeve/Hole – Seals 159-211mm Diameter Pipes

Brand: Hauff-Technik
Product Code: 3030300072
In Stock

Standard press seals with super segmented ring technology. The Hauff-Technik Press Seals are for sealing both newly installed pipes and already installed pipes inside core drilled holes or wall sleeves. The super segemented ring technology means that the press seals are infinitely adjustable to cable diameters on site.

£178.68 incl. VAT
£148.90 excl. VAT

Qty:

Standard Press Seals with Super Segmented Ring Technology. The Hauff-Technik Press Seals are for sealing both newly installed pipes and already installed pipes inside core drilled holes or wall sleeves. The super segemented ring technology means that the press seals are infinitely adjustable to cable diameters on site. Segments are also marked with exact diameters to ensure the ease of installation.

Advantages:

  • Split as standard for retrofit installation
  • All manner of material combinations are available for tailor-made applications

Dimensions:

  • Sealing width up to Ø 250 mm: 40 mm

Properties:

  • U-profile: maximum stability for press segments

Application Range:

  • Waterproof concrete stress class 1
  • Waterproof concrete stress class 2

Material:

  • Press plates, screws and nuts: Rust-free stainless steel V2A (AISI 304L) or V4A (AISI 316L)
  • Rubber: EDPM or NBR

Tightness:

  • Gastight
  • Watertight
Wall sleeve/core drilled hole internal diameter (mm) 250
Openings 1
Carrier pipe ∅a (mm) 159-211
Dimensions Sealing width up to ∅ 250mm: 40mm
Sealing width for ∅ 300mm: 50mm
Application range Waterproofing concrete stress class 1
Waterproofing concrete stress class 2
Material Press plates, screws and nuts: rust-free stainless steel V2A (AISI 304L) or V4A (AISI 316L)
Rubber: EDPM or NBR
Tightness Gastight and watertight
Radon tight
