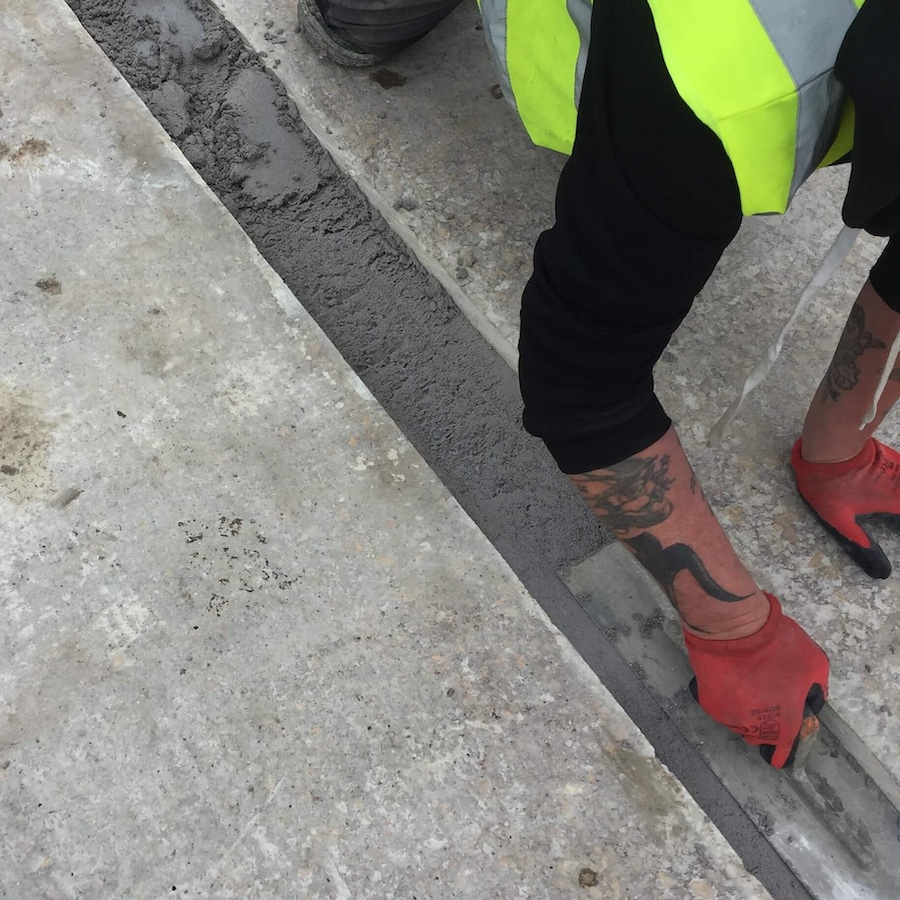

Nufins Epicon FS Mortar ApplicationNufins Epicon FS Mortar Application

Nufins Epicon F.S. Fast Setting Epoxy Mortar – 20kg

Brand: Nufins
Product Code: 03N210ZZ2025
In Stock

Nufins Epicon F.S. Mortar is a rapid-curing epoxy mortar that allows concrete repairs to be carried out with minimal disruption. A primer is not required and the mortar will tolerate being applied to a damp substrate.

£85.38 incl. VAT
£71.15 excl. VAT

Qty:

Nufins Epicon F.S. Mortar has been designed to comply with the requirements of EN 1504 Part 3 Class R4. It is a fast curing, heavy duty epoxy mortar which has been formulated to enable the rapid repair of concrete surfaces.

Epicon F.S. Mortar is a pre-weighed three component system of solvent free epoxy resin and hardener which, when blended with the aggregate provided, forms a high strength mortar with outstanding adhesive properties.

Ideal for reactive maintenance in locations of heavy use, such as carparks, rail stations and goods yards.

Advantages:

  • High early strength development
  • Excellent adhesion to concrete, stone, asphalt & metal
  • Provides an anti-slip surface, with excellent abrasion resistance
  • Resistant to a wide range of chemicals
  • Tolerant to road salts & freeze-thaw
  • No need for a primer
  • Cures in cold damp conditions
  • Suitable for depths up to 150mm
  • Non-shrink & Grey in colour
  • Ready for trafficking in a few hours

Applications:

  • Repair of worn & damaged concrete floors
  • Restoration of worn stairs & steps
  • Repair of spalled expansion joints
  • Repair of concrete roads, bridge decks & runways
Technical Properties of Epicon F.S. Mortar
Properties Standard Performance Requirement Declared Value
Appearance Grey Resinous Mortar
Chloride-ion content EN 1015-17 ≀0.05 % <0.05 %
Aggregate size Max. 1 mm
Layer thickness 1mm to 150mm
Working time (@ 23Β°C) 45-60 minutes
Hardening time (@ 23Β°C) 60-90 minutes
Density 1950-2100 kg/m3
Temperature for application 5oC to 35oC
Compressive strength @ 23Β°C EN 12190 β‰₯45 MPa 50 MPa @ 4 hours
60 MPa @ 6 hours
75 MPa @ 24 hours
87 MPa @ 3 days
90 MPa @ 7 days
Compressive strength @ 10Β°C EN 12190 2.5 MPa @ 4 hours
9 MPa @ 6 hours
56 MPa @ 24 hours
87 MPa @ 3 days
88 MPa @ 7 days
Tensile strength BS 6319-7 13 MPa
Flexural strength BS 6319-3 26 MPa
Modulus of elasticity, in flexure BS 6319-3 20 GPa
Modulus of elasticity, in compression EN 13412 β‰₯20 GPa 20 GPa
Adhesion – concrete EN 1542 β‰₯2.0 MPa β‰₯2.0 MPa
Adhesion after freeze/thaw (50 cycles with salt) EN 13687-1 β‰₯2.0 MPa β‰₯2.0 MPa
Adhesion after thunder showers (30 cycles) EN 13687-2 β‰₯2.0 MPa β‰₯2.0 MPa
Adhesion after dry cycling (30 cycles) EN 13687-4 β‰₯2.0 MPa β‰₯2.0 MPa
Skid Resistance EN 13036-4 Class 1
Carbonation resistance EN 13295 dk ≀ ref. concrete Passes
Capillary absorption EN 13057 ≀0.5 kg/mΒ².h0.5 ≀0.5 kg/mΒ².h0.5
Cracking tendency Coutinho Ring Test No cracking after 180 days
