Cetco Voltex GB-500 Gas and Waterproofing Barrier - 1.66mm x 10mCetco Voltex GB-500 Gas and Waterproofing Barrier - 1.66mm x 10m

Cetco Voltex GB-500 Gas and Waterproofing Barrier – 1.66mm x 10m

Brand:
Product Code: GB-500
In Stock

VOLTEX GB-500 is a high performance gas vapour and waterproofing barrier for underground structures. The membrane is designed for use as a gas vapour waterproofing barrier to resist radon, methane, carbon dioxide gases and water from landfill and naturally-occurring sources.

£406.37 incl. VAT
£338.64 excl. VAT

Qty:

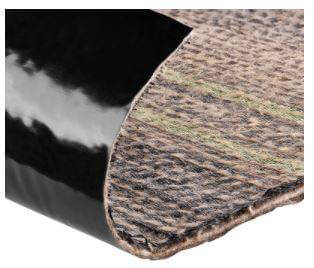

High performance gas vapour and waterproofing barrier for underground structures. VOLTEX GB-500 is a membrane composite comprised of a 500 micron thick, 7 layer engineered film consisting of polyethylene and a EVOH barrier layer with integrated bentonite geotextile waterproofing tanking membrane. Along the two roll edges the two layers are not integrally bonded for 150 mm to facilitate ease of welding or taping the PE/EVOH geomembrane overlap and then overlapping the geotextile layer component.

VOLTEX GB-500 is designed for use as a gas vapour waterproofing barrier to resist the ingress of radon, methane, carbon dioxide gases and water into buildings from landfill and naturally-occurring sources. VOLTEX GB-500 can be installed on sites with passive or active sub-slab ventilation measures; used in conjunction with GEOVENT ventilation composite and relevant vent connectors as applicable.

VOLTEX GB-500 can be used in both non-hydrostatic and hydrostatic conditions. VOLTEX GB-500 fully complies with the latest codes of practice for gases and water as published by BRE, CIRIA and BSI (BS 8485:2015+A1:2019; BS8102: 2009), and is suitable for use as a gas and water protection system for NHBC AMBER 1 and AMBER 2 site characterisations.

Applications:

VOLTEX GB-500 is designed for use as a gas vapour resistant barrier to restrict the ingress of radon, methane, carbon dioxide gases and water into buildings from landfill and naturally-occurring sources. VOLTEX GB-500 can be installed on sites where passive or active ventilation measures are required; used in conjunction with GEOVENT ventilation composite and relevant vent connectors as applicable.

VOLTEX GB-500 can be used in both non-hydrostatic and hydrostatic conditions where protection against gases and water is required.

Size and Packaging:

Standard roll size 1.66 m x 10.0 m.

Characteristic Test Method Unit Value
Physical Properties
Thickness EN 1849-2 mm 5 typical
Width EN 1849-2 m 1.66
Length EN 1849-2 m 10
Weight EN 1849-2 g/m² 3200
Hydraulic Properties of PE/EVOH 7 Layers Liner
Water tightness after artificial ageing EN 1296 (12 weeks); EN 1928 B – Tight
Water tightness against chemicals EN 1847 (28 d/+23°C); EN 1928 B – Tight
Mechanical Properties of PE/EVOH 7 Layers Liner
Resistance to static load EN 12730 kg 20
Tensile strength (MD) EN 12311-1 N/50mm 550
Tensile strength (CMD) EN 12311-1 N/50mm 400
Tensile elongation (MD) EN 12311-2 % 500
Tensile elongation (CMD) EN 12311-2 % 500
Puncture resistance ASTM D 4833 N 170
Resistance to tearing (nail shank) MD EN 12310-1 N 300
Resistance to tearing (nail shank) CMD EN 12310-1 N 300
Gas Permeability of PE/EVOH 7 Layers Liner
Methane transmission rate EN ISO 15105-1 ml/m² x day x atm ≤ 0.1
Radon diffusion coefficient D ISO/TS 11665-13 m²/s 7.1 x 10⁻¹⁴ (+-0.8 x 10⁻¹⁴)
Carbon Dioxide transmission EN ISO 15105-1 ml/m² x day x atm < 1.0
Water vapour transmission rate EN ISO 15105-3 cm³/m² x day x bar ≤ 0.1
Membrane Composite
Hydrostatic transmission rate ASTM D 5385 (mod) m 70
Peel adhesion to concrete ASTM D 903 (mod) kN/m min 2.6
Tensile strength (MD/CD) EN ISO 10319 kN/m ≥ 13
Puncture resistance EN ISO 12236 kN 2.5
